Wi-Fi 6 Dual-Band
Access Point
The EnGenius ECW210L Wi-Fi 6 access point delivers reliable dual-band wireless connectivity, cloud-managed networking, and affordable performance for small business environments.
Reliable Wi-Fi for Everyday Business
The ECW210L combines Wi-Fi 6 performance, cloud-managed simplicity, and cost-effective deployment, making it ideal for small offices, retail stores, cafés, professional services, and branch locations.
Enhanced Wireless Coverage
Extend Wi-Fi coverage while maintaining reliable connectivity for employees, guests, and connected devices.
Efficient Device Management
Support multiple devices and everyday business applications with improved network efficiency and performance.
Cloud-Managed Simplicity
Deploy, monitor, and manage networks through the EnGenius Cloud platform from a single interface.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
Processor
Qualcomm® Dual-Core CPU ARM Cortex A53 @ 1.0GHz
Antenna
2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

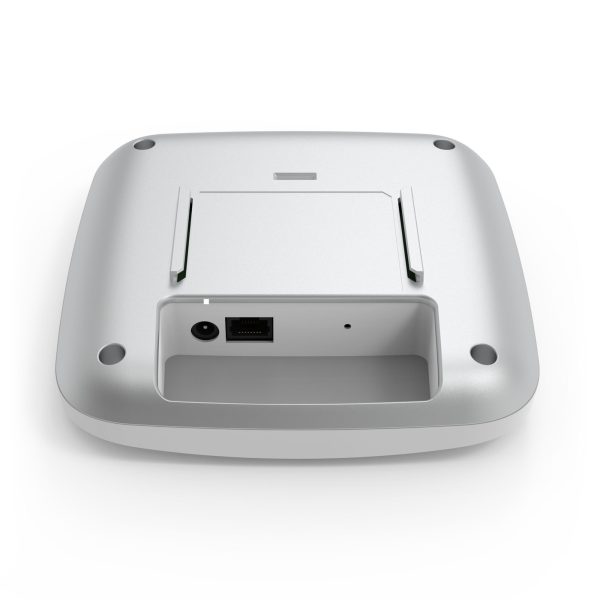

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button
LED Indicators
1 x Colors LEDs
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /1.5A
Maximum Power Consumption
10.7W
Wireless & Radio
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
AP
Mesh
AP Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 21 dBm on 2.4 GHz
Up to 21 dBm on 5 GHz
Tx Beamforming (TxBF)
Yes
Radio Chains/Spatial Stream
2×2:2
SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SU-MIMO for 5GHz up to 2,400Mbps wireless data rate to a single 11ax wireless client device under both the 2.4G Hz and 5GHz radios.
MU-MIMO
Two (2) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports very high throughput (HE) —VHT 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Management
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliant With IEEE 802.11e Standard
WMM
SNMP
v1
v2c
v3
MIB
I/II
Private MIB
Wireless Security
WPA3-PSK (SAE)
WPA3 Enterprise
WPA2 Enterprise (AES)
WPA2 AES-PSK
OWE
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Environmental & Physical
Temperature Range
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Device Dimensions & Weights
ECW210L Device
Weight: 0.83 lbs. (380 g)
Length: 6.30″ (160 mm)
Width: 6.30″ (160 mm)
Height: 1.18″ (30 mm)
ECW210L Packaging
Weight: 1.10 lbs. (500 g)
Length: 10.35″ (263 mm)
Width: 6.41″ (163 mm)
Height: 1.49″ (38 mm)
Package Contents
1 x ECW210L Cloud Managed Indoor Access Point
1 x Ceiling Mount Base (9/16” Trail)
1 x Ceiling Mount Base (15/16” Trail)
1 x Ceiling and Wall Mount Screw Kits
1 x Quick Start Guide QR Code
1 x Mobile App QR Code
Certifications
FCC
CE
IC
Warranty
2 Years
Power Sources
This access point does not include an AC adapter and must be powered over ethernet.
