48-Port Stackable
Layer 3 Switch

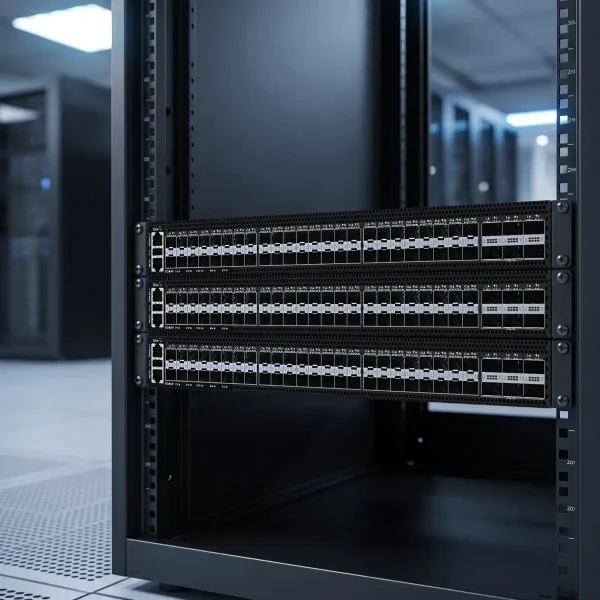

The EnGenius CloudSwitch Core ECS8854F is a cloud-managed, stackable Layer 3 switch featuring 48 × 10G SFP+ and 6 × 100G QSFP28 ports for high-speed aggregation and core connectivity. It delivers advanced Layer 3 routing, high-performance switching, and enterprise-class reliability for scalable enterprise and campus networks.
Scalable Enterprise Core Network Connectivity
The EnGenius ECS8854F delivers ultra-high-density 10G fiber switching with 100G uplinks, advanced Layer 3 routing, and enterprise-class resiliency for demanding enterprise core, aggregation, and data center environments.
48×10G with 6×100G Uplinks
Deliver ultra-high-density 10G connectivity with 100G uplinks for large enterprise and data center networks.
Advanced Layer 3 Core Switching
Enable high-performance L3 routing, traffic optimization, and scalable core networking for demanding applications.
Flexible Management, Enterprise Core
Manage switches with EnGenius Cloud, Standalone Mode, or remotely via GUI and CLI.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Port Standards
802.3z 1000Base-X
802.3ae 10GBase-R
802.3bj 100GBase-CR4/KR4
802.3bm 100GBase-SR4
Network Ports
24 x 10G SFP+ Ports
6 x 100G QSFP28 Ports
Console Port
1 x RJ-45 Console port
Management Port
1 x Dedicated Management (MGMT) Port
USB Port
1 x USB 2.0 port
Switching Capacity
1680 Gbps
Forwarding Rate
Up to 600 Mpps (64-byte packets)
Memory
4GB DDR4 SDRAM
Flash Memory
32 MB SPI Flash + 8 GB eMMC
Power Source
AC in
L2 Features
Jumbo Frame
Up to 10,000 bytes
MAC address Table
Max. 32,000
Spanning Tree Protocol
Supports STP, RSTP, and MSTP
Spanning Tree Protocol Features
Supports PortFast, BPDU Guard, and Root Guard to improve network stability and prevent Layer 2 topology issues.
Port Channel
Supports Static Link Aggregation and LACP (IEEE 802.3ad)
Up to 128 trunk groups
Up to 8 ports per trunk
VLAN
Supports up to 4,000 IEEE 802.1Q VLANs
Supports MAC VLAN, Super VLAN, Private VLAN, Protocol VLAN, GVRP, and Voice VLAN.
IEEE 802.1ad VLAN Stacking (Q-in-Q)
Supports IEEE 802.1ad VLAN Stacking (Q-in-Q)
Selective Q-in-Q
Supports VLAN stacking only to selected traffic or ports for flexible service deployment (shared ACL entry resources)
VLAN Translation
Supports VLAN ID mapping between different network domains
LLDP/LLDP-MED
Supports LLDP and LLDP-MED
BPDU Tunneling
Supports transparent forwarding of BPDUs across service provider networks
Port isolation
Supports port isolation
Ethernet Ring Protection Switching (ERPS)
Supports ERPS v1 and v2 for fast ring network recovery and high availability.
Port Rate Limiting
Supports bandwidth control based on Tx (Egress) and Rx (Ingress)
Loopback detection
Supports loopback detection to prevent network loops
L3 Features
Routing Table
Supports up to 30,000 routing entries (shared by IPv4 and IPv6)
IP Interface
Supports up to 65 IPv4 interfaces
Supports up to 32 IPv6 interfaces
ARP Table
Supports up to 8,000 ARP entries (shared by IPv4 ARP and IPv6 Neighbor Discovery)
Supports configurable ARP aging and ARP Proxy
VRF
supports up to 1,000 VRF-related routing entries
ECMP
Supports load balancing across equal-cost paths
URPF
Supports source IP validation to prevent IP spoofing
GRE Tunnel
Supports Layer 3 traffic encapsulation over IP networks
ISAPAP
Supports IPv6 connectivity over IPv4 networks
Network Diagnostic Tools
Supports IPv4/IPv6 Ping and Traceroute
VRRP
Supports VRRPv2/v3 for gateway redundancy.
L2/L3 Multicast Features
MLD
Supports up to 4000 multicast entries (shared with IGMP)
Supports MLD v1/v2
Supports MLD Snooping
IGMP
Supports up to 4000 multicast entries (shared with MLD)
Supports IGMP v1/v2/v3
Supports IGMP Snooping
PIM-DM/SM (IPv4/IPv6)
Supports dense and sparse multicast routing
PIM-SSM (IPv4/IPv6)
Supports Source-Specific Multicast routing
Routing Features
Null Interface
Supports null routes for traffic filtering
Static Routing
Supports IPv4 and IPv6 Static Routes
RIP/RIPng
Supports dynamic IPv4/IPv6 routing
OSPFv2/v3
Supports scalable IPv4/IPv6 dynamic routing
BGP/BGP4+
Supports scalable inter-domain routing
Access Control List
Supports IPv4 Standard ACL
Supports IPv4 Extended ACL
Supports IPv6 Standard ACL
Supports IPv6 Extended ACL
Supports MAC ACL
Supports custom access control rules
Queue Scheduling
Supports Strict Priority (SP)
Supports Weighted Round Robin (WRR)
Supports Weighted Deficit Round Robin (WDRR)
ACL Features
ACL Capacity
Supports up to 1000 shared ACL entries (IPv4/IPv6 ingress/egress)
Access Control List
Supports IPv4 Standard ACL
Supports IPv4 Extended ACL
Supports IPv6 Standard ACL
Supports IPv6 Extended ACL
Supports MAC ACL
Supports custom access control rules
QoS Features
Hardware Queues
8 queues per port
Traffic Classification
Based on 802.1p Priority and DSCP
Queue Scheduling
Supports Strict Priority (SP)
Supports Weighted Round Robin (WRR)
Supports Weighted Deficit Round Robin (WDRR)
Management Features
SNMP
Supports IPv4 management
Supports IPv6 management
Supports SNMP v1, v2c, and v3
Web UI
Supports HTTP/HTTPS over IPv4 and IPv6
RMON
Supports Statistics (Group 1)
Supports History (Group 2)
Supports Alarms (Group 3)
Supports Events (Group 9)
Port Mirroring
Supports up to 7 mirroring groups
Supports One-to-One, Many-to-One and flow-based mirroring
Supports VLAN-based traffic mirroring
RSPAN
Supports Remote Switch Port Analyzer
ERSPAN
Supports Encapsulated Remote Switch Port Analyzer
NETCONF
Supports Network Configuration Protocol for automated device management
sFlow
Supports sFlow for network traffic monitoring and analysis
SNTP
Supports Simple Network Time Protocol for time synchronization
NTP
Supports IPv4/IPv6 NTP server
Supports IPv4/IPv6 NTP client
DNS
Supports IPv4/IPv6 DNS client
DHCP Client
Supports IPv4/IPv6 DHCP client
Supports DHCP Option 67 (Bootfile Name)
DHCP relay
Supports IPv4/IPv6 DHCP relay
Supports DHCP Option 82 (Relay Agent Information)
DHCP server
Supports IPv4/IPv6 DHCP server
Supports DHCP Option 43 (Vendor-Specific Information)
DHCP Snooping
Supports DHCP Snooping
Supports DHCP Option 82
Supports IP Source Guard (IP Filter)
Telnet
Supports IPv4/IPv6 Telnet Client
Supports IPv4/IPv6 Telnet Server
SSH
Supports IPv4/IPv6 SSH Client
Supports IPv4/IPv6 SSH Server
TFTP
Supports IPv4 TFTP Client
SFTP
Supports IPv4 SFTP client
FTP
Supports IPv4/IPv6 FTP client
Supports IPv4/IPv6 FTP server
Multiple Image
Supports multiple firmware images
Multiple Configuration File
Supports multiple configuration files
Syslog Server
Supports IPv4/IPv6 Syslog Client
EnGenius Cloud management
Supports EnGenius Cloud management
OAM (Operations, Administration, and Maintenance)
EFM OAM
Supports Ethernet in the First Mile (EFM) OAM (IEEE 802.3ah)
CFM OAM
Supports Connectivity Fault Management (CFM) OAM (IEEE 802.1ag)
Dying Gasp
Supports Dying Gasp notification for unexpected power loss
Fan Monitoring
Supports fan status monitoring and alerts
Power Monitoring
Supports power supply status monitoring and alerts
Digital Diagnostic Monitoring (DDM)
Supported for compatible optical transceivers
Security Features
Radius
Supports IPv4/IPv6 RADIUS Client
TACACS+
Supports IPv4 TACACS+ authentication client
Storm Control
Supports Broadcast, Multicast, and Unknown Unicast storm suppression
Rate limiting based on Packets Per Second (pps)
IEEE 802.1X Authentication
Supports Port Channel, Port-based and MAC-based authentication.
Supports MAC Authentication Bypass (MAB)
Supports local authentication database
Port Security
Supports port security
Dynamic ARP Inspection (DAI)
Supports Dynamic ARP Inspection (DAI)
CPU Protection
Supports CPU protection
DOS protection
Supports protection against ICMP, IP, and TCP DoS attacks
ARP protection
Supports ARP protection
Captive Portal
Supports MAC/IP address authentication bypass
HTTPS
Supports HTTPS secure web management
High Availability Features
Virtual Switch Framework (VSF)
Supports Virtual Switch Framework (VSF) stacking
Supports up to 4 stack members
MC-LAG
Supports Multi-Chassis Link Aggregation (MC-LAG)
UDLD
Supports Unidirectional Link Detection (UDLD)
ULPP
Supports Upstream Link Protection Protocol (ULPP)
ULSM (Uplink State Monitor)
Supports uplink state monitoring for enhanced network resiliency
Metro Ethernet Features
MPLS L3VPN
Supports MPLS Layer 3 VPN (L3VPN)
MPLS L2VPN
Supports Virtual Private LAN Service (VPLS)
Supports Virtual Private Wire Service (VPWS)
Data Center Features
Telemetry
Supports network telemetry
VXLAN
Supports Virtual Extensible LAN (VXLAN)
Environmental & Physical
Operating Temperature
0°C to 50°C (32°F to 122°F)
Operating Humidity
10% to 90% RH (non-condensing)
Power Supply
Supports 1+1 redundant hot-swappable power supplies
Cooling Fan
Supports 3+1 redundant hot-swappable fan modules
Airflow
Supports front-to-back airflow
Package Contents
1 x Cloud Managed Switch
1 x Product Card
2 x Power Cord
1 x RJ45 Console Cable
1 x Rack Mount Kit
Dimensions & Weights
ECS8854F Device
Weight: 14.55 lbs. (6600 g)
Length: 17.71″ (450 mm)
Width: 17.40″ (442 mm)
Height: 1.77″ (45 mm)
ECS8854F Packaging
Weight: 22.39 lbs. (10160 g)
Length: 25.35″ (644 mm)
Width: 21.33″ (542 mm)
Height: 6.73″ (171 mm)
Form Factor
1U, 19-inch rack-mount
SFP Options
Get the most out of your switch by utiizing fiber connections.
SFP3313-20A
SFP+ Switch 10Gig Transceiver Module

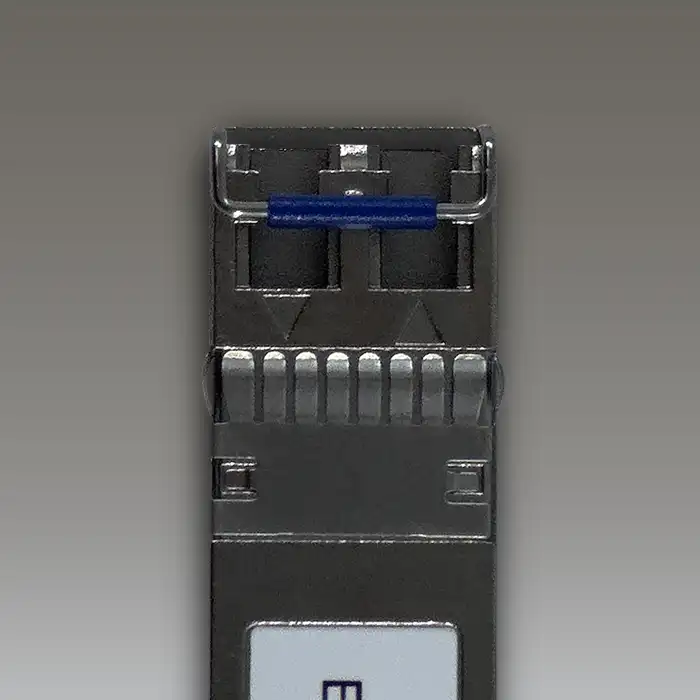

SFP3213-10
