Broadband Outdoor 5GHz Dual Radio 2×2 Point to Point WiFi 6 Bridge w/ integrated 16dBi Antenna

Technical Specifications

Standards
IEEE 802.11ax on 5 GHz
(Backward compatible with 802.11b/g/n/ac)

Processor
IPQ5018+QCN6102, QCA8337

Antenna Gain
5 GHz: 16 dBi Integrated Internal Antenna

IP Rating
IP55

Dying Gasp
40ms (Max)

Antenna 5 GHz (Port 1)
Average Antenna Gain: 16 dBi
Polarization: Linear
Azimuth Beam Width: 40°
Elevation Beam Width: 20°
VSWR: 1:2.0

Antenna 5 GHz (Port 2)
Average Antenna Gain: 16 dBi
Polarization: Linear
Azimuth Beam Width: 40°
Elevation Beam Width: 20°
VSWR: 1:2.0

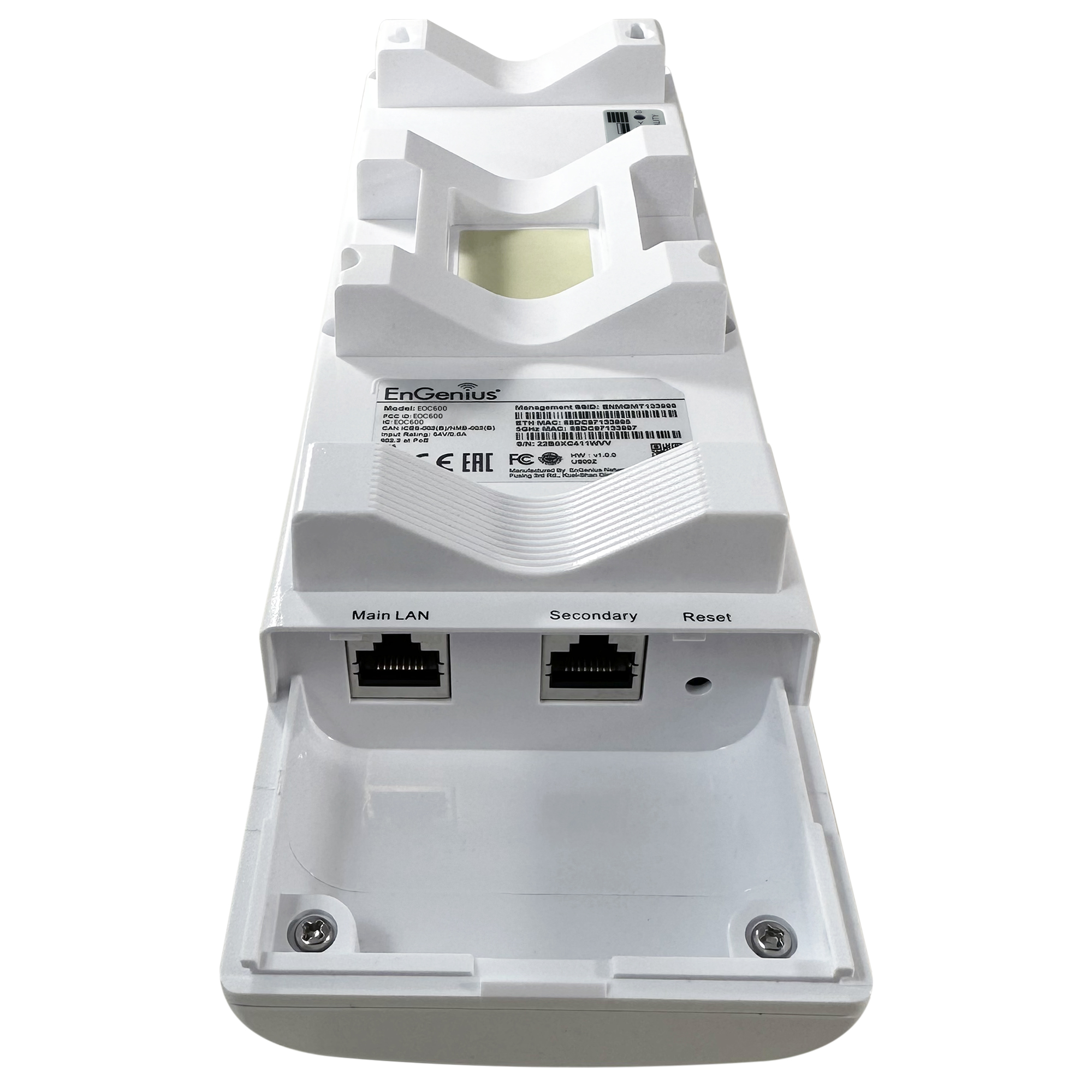

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port (802.3at PoE)
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1 x Reset Button

LED Indicators
1 x Power
1 x LAN 1
1 x LAN 2
1 x WLAN
1 x Signal

Power Source
EPA5006GR
• INPUT: 100V~240VAC, 0.8A @ 120V AC, 50-60Hz
• OUTPUT: 54V, 0.6A

Maximum Power Consumption
13W

Surge Protection
1KV

EDS Protection
Contact: 4KV
AIR: 8KV

Wireless & Radio Specifications

Operating Frequency
5 GHz

Operation Modes
Base Station (BSU), Subscriber (SU)

Max Subscribers
32 per radio

Frequency Radio
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz (Broadband Connectivity)

Transmit Power
Up to 26 dBm (Combined)

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial stream SU-MIMO for 5GHz up to 1,200 Mbps wireless data rate with VHT80 to a single 2x2 wireless client device under 5GHz radio.

MU-MIMO
Two (2) spatial streams multiple (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to two (2) stream MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.

Supported Data Rates (Mbps):
802.11ax: 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 4)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Dynamic Channel Selection (DCS)
Selects optimal channel to operate to maintain SLAs (CIR & MIR)

Dynamic Data Rate Selection (DDRS)
Automatically detect optimal data rate for a given link

Auto Transmit Power Control (ATPC)
Automatically adapt the transmit power

Interference Mitigation
Auto Channel Selection (ACS), Dynamic Channel Selection (DCS), and Background Scan (BG Scan) features aid in adapting to varying RF medium

Encryption
AES 256

Spectrum Analyzer
Provides RF medium statistics

VLAN Tagging
Supports 802.1Q: Transparent, Access, Trunk, Q-in-Q

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
IEEE 802.11e compliant
WMM

SNMP
v1, v2c, v3

IP Stack
IPv4, IPv6

MAC-in-MAC (Under Development)
To improve the multicast traffic performance, IGMP Snooping (Under development)

Ethernet-QAM (Under Development)
Fault Link Management (Under development)

Packet Filtering (Under Development)
MAC, IP, Protocol, Port (Under development)

NTP Server
External Server

Asymmetric Bandwidth Control (Under Development)
Asymmetric UL/DL committed and maximum information rate per Service Flow

Packet Classification Capabilities (Under Development)
802.1p p priority, IPTOS, VLAN ID, IP addresses, Ports, Ethernet Addresses, IP Protocol, and Ether Type. Supports a maximum of 4 SFC’s with a maximum 32 PIR’s

Scheduling
Real-Time priority-based services

Environmental & Physical

Temperature Range
Operating: -14ºF~140ºF (-10ºC~60ºC)
Storage: -22ºF~176 ºF (-30ºC~80ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Device Dimensions & Weights

EOC600 Device  
Weight: 1.34 lbs. (0.61 kg)
Length: 10.23" (260 mm)
Width: 2.16" (55 mm)
Height: 3.30" (84 mm)

EOC600 Packaging
Weight: 2.35 lbs. (1.07 kg)
Length: 12.08" (307 mm)
Width: 4.96" (126 mm)
Height: 4.80" (122 mm)

Package Contents          
1 – EOC600 Outdoor Wireless
1 – PoE Injector (EPA5006GR)
1 – Power Cord

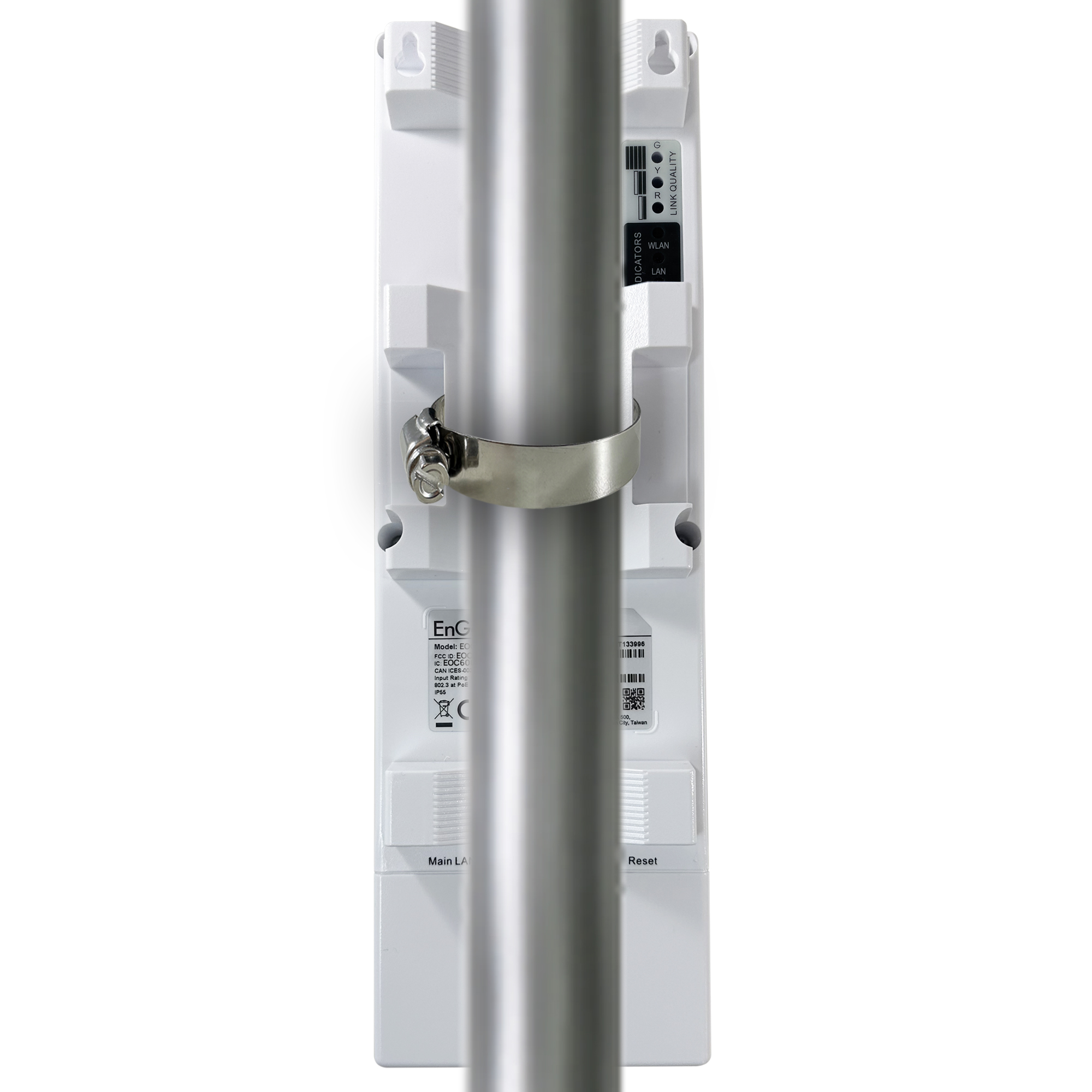

2 – Pole Mount Brackets
1 – Pole Mount Strap
1 – Wall Mount Screw Kits
1 – Product Card

Certifications
FCC
IC
CE

Warranty
1 Year
