Wi-Fi 7 Cloud Managed 2×2 Dual Band Indoor Wireless Access Point

Technical Specifications

Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
(Backward compatible with 802.11b/g/n/ac/ax)

Processor
Qualcomm® Networking Pro 1220

Antenna
2 x 2.4 GHz: 3 dBi (Integrated Omni-Directional)
2 x 5 GHz: 5 dBi (Integrated Omni-Directional)

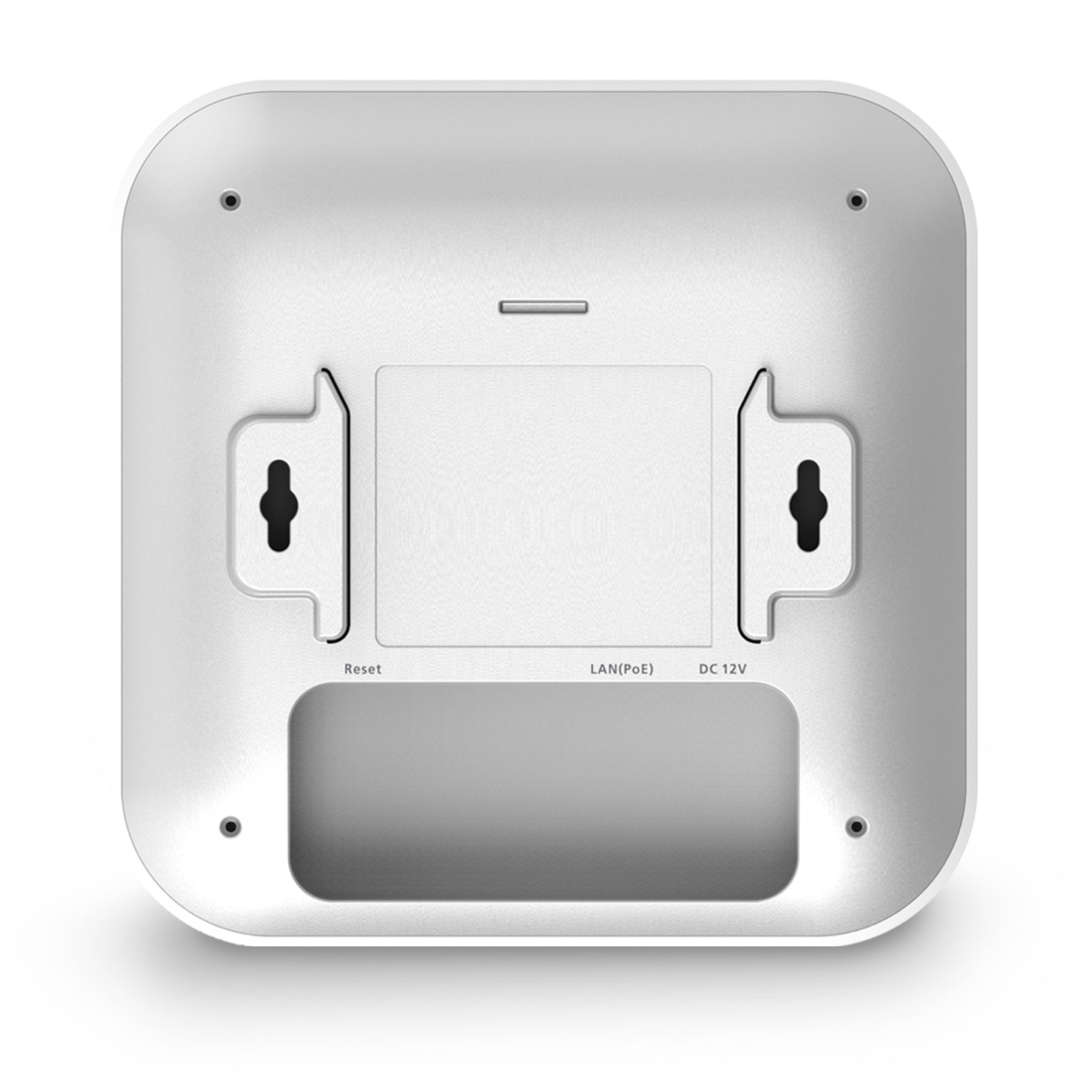

Physical Interface
1 x 2.5 GE Port (PoE+)
1 x DC Jack
1 x Reset Button

LED Indicators
1 x Multi-Color LED

Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)
EPA5060XBT PoE++ Injector (Not Included)

Maximum Power Consumption
18.7W

Wireless & Radio Specifications

Operating Frequency
Dual Radio Concurrent 2.4 GHz and 5 GHz

Operation Modes
Managed Mode: AP, AP Mesh, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz, 5850MHz ~ 5895MHz

Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 21 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 4,300 Mbps wireless data rate with EHT240 bandwidth to a 2x2 wireless device under the 5GHz radio.

MU-MIMO
Two (2) spatial stream MU-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Two (2) spatial stream MU-MIMO for up to 4,300 Mbps wireless data rate with EHT240 bandwidth to a 2x2 wireless device under the 5GHz radio.

Supported Data Rates (Mbps):
802.11be:
- 2.4 GHz: Max 700 (MCS0 to MCS13, NSS = 1 to 4)
- 5 GHz: Max 4,300 (MCS0 to MCS13, NSS = 1 to 4)
802.11ax:
- 2.4 GHz: 9 to 5,74 (MCS0 to MCS11, NSS = 1 to 4)
- 5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS31)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11

Supported Radio Technologies
802.11be/ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160/240 MHz
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent Users
400 Per Radio

Management

Multiple BSSID
8 SSIDs for 2.4GHz and 5GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Fast Roaming
802.11r/k

Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
Client Isolation
L2 Isolation

Environmental & Physical

Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Network Ethernet Ports
1x 10/100/1000Mb, 2.5Gb Data Input; RJ-45

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)

Device Dimensions & Weights

ECW510 Device
Weight: 1.46 (660 g)
Length: 6.29" (160 mm)
Width: 6.29" (160 mm)
Height: 1.26" (32 mm)

ECW510 Packaging
Weight: 1.96 lbs. (0.88 kg)
Length: 8.15" (207 mm)
Width: 8.15" (207 mm)
Height: 3.43" (87 mm)

Package Contents
1 – ECW510 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” T-Rail)
1 – Ceiling Mount Base (15/16” T-Rail)
1 - Ceiling and Wall Mount Screw Kits
1 – Product Card

Certifications
FCC
CE
IC
UKCA

Warranty
5-Year Limited Hardware Warranty
