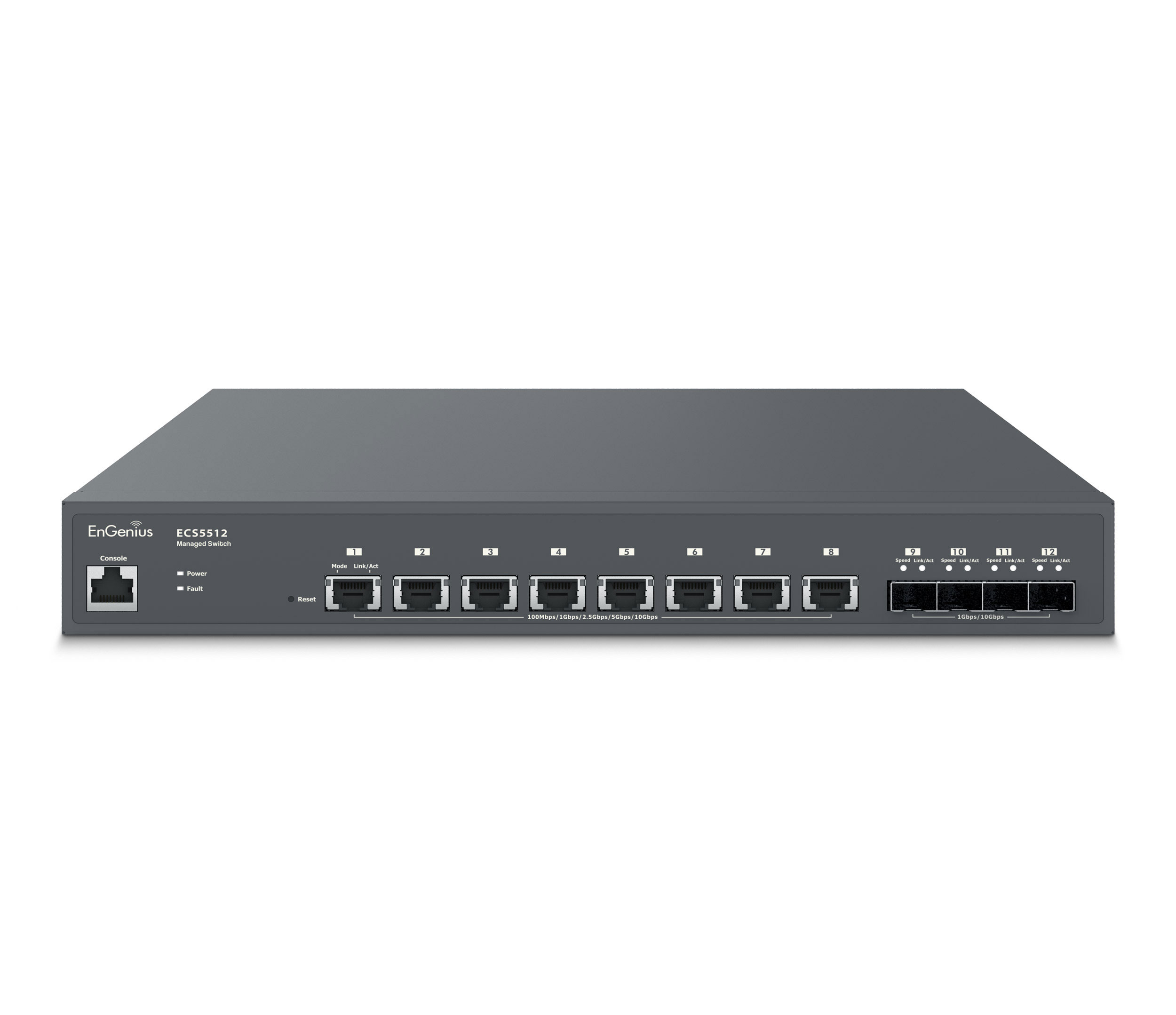

Cloud Managed 8-Port 10 Gigabit Switch with 4 SFP+ Ports

ECS5512  |  More Details >

Layer 2+ Switch Comes With 4 10Gig Uplink Ports, Ensuring Network Efficiency

Getting Started with EnGenius Cloud   |   Try the Cloud Demo >





Buy Now


Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
802.3an 10000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
8 10/100/1000/2500/5000/10000 Mbps Ports + 4x SFP+ Ports

Switching Capacity
240Gbps

SDRAM
512MB

Flash Memory
128MB

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)



Software Features (L3 Features)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries



Software Features (L2 Features)

Network Management
EnGenius Cloud
Local Web GUI

MAC Address Table
32K

Jumbo Frame
9K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries

Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding

Web Graphical User Interface(GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6



SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

System Time
Time Setting/Daylight saving

Common L2 Features
802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast/Unknown Unicast Storm Control



Environmental & Physical

Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)
Operating: 5% - 95%

Package Contents
1x Cloud Managed 10 Gig Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit



Device Dimensions & Weights

ECS5512 Device
Weight: 4.54 lbs (2.06 kg)
Width: 9.05” (230 mm)
Length: 12.99” (330 mm)
Height: 1.73” (44 mm)

Packaging
Weight: 6.11 lbs (2.77 kg)
Width: 15.75” (400 mm)
Length: 12.0” (305 mm)
Height: 3.94” (100 mm)

Warranty
5 years

Certifications
CE
FCC
IC



Type Name Version Release Date Download Checksum
Firmware ECS55XX_firmware_v2.2.26-161.imag v2.2.26-161 December 10, 2024
Firmware ECS55xx series firmware v1.2.70 v1.2.70 November 25, 2024 -
Firmware ECS55xx series firmware v1.2.68 v1.2.68 November 25, 2024 -
Webpage Compare Switch Models - November 27, 2024 -
Webpage Learn More About EnGenius Cloud - November 25, 2024 -
Webpage Learn More About Gigabit Switches - November 26, 2024 -
Data Sheet ECS5512 Datasheet v1.0 October 21, 2024 -
Quick Guide ECS5512 Quick Start Guide v1.0 October 21, 2024 -
User Manual Cloud Switch Command Line Interface User Manual v1.0 November 04, 2024 -
User Manual EnGenius Cloud Switch User Manual v1.0 November 04, 2024 -
Data Sheet Cloud Managed Switch Datasheet v1.0 November 04, 2024 -
User Manual Cloud User Manual v1.0 November 27, 2024 -
User Manual Getting Started with Two Factor Authentication v1.0 November 27, 2024 -
User Manual Getting Started with EnGenius Cloud v1.0 November 27, 2024 -
Data Sheet EnGenius Cloud Management Datasheet v1.6 November 27, 2024 -

Product Highlights
The EnGenius Cloud ECS5512 is an 8-port, 10G per port, layer 2+ switch that comes with 4 10G uplinks ports. These 10 gig switches with enterprise-class features ensure network efficiency and peak performance for large businesses. Cloud or on-premises management is available based on network architecture, administrative permissions, technical aptitude, and budget.

 5-Year Warranty
  • Full-featured layer 2+ switching
  • 8 100/1000/2500/5000/10000 Base-T GbE ports to serve high-bandwidth devices
  • 240 Gbps switching capacity for improved performance
  • 4 Dual-Speed 10G SFP+ (fiber) uplink ports to connect at long distances, high speeds & high capacity
  • Security - access control list/port security; 802.1X & RADIUS authentication
  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency
  • 802.3ad link aggregation (LACP) supports traffic load balancing
  • Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
  • Voice VLAN for fast, reliable deployment of VoIP services
