AI Network
Video System

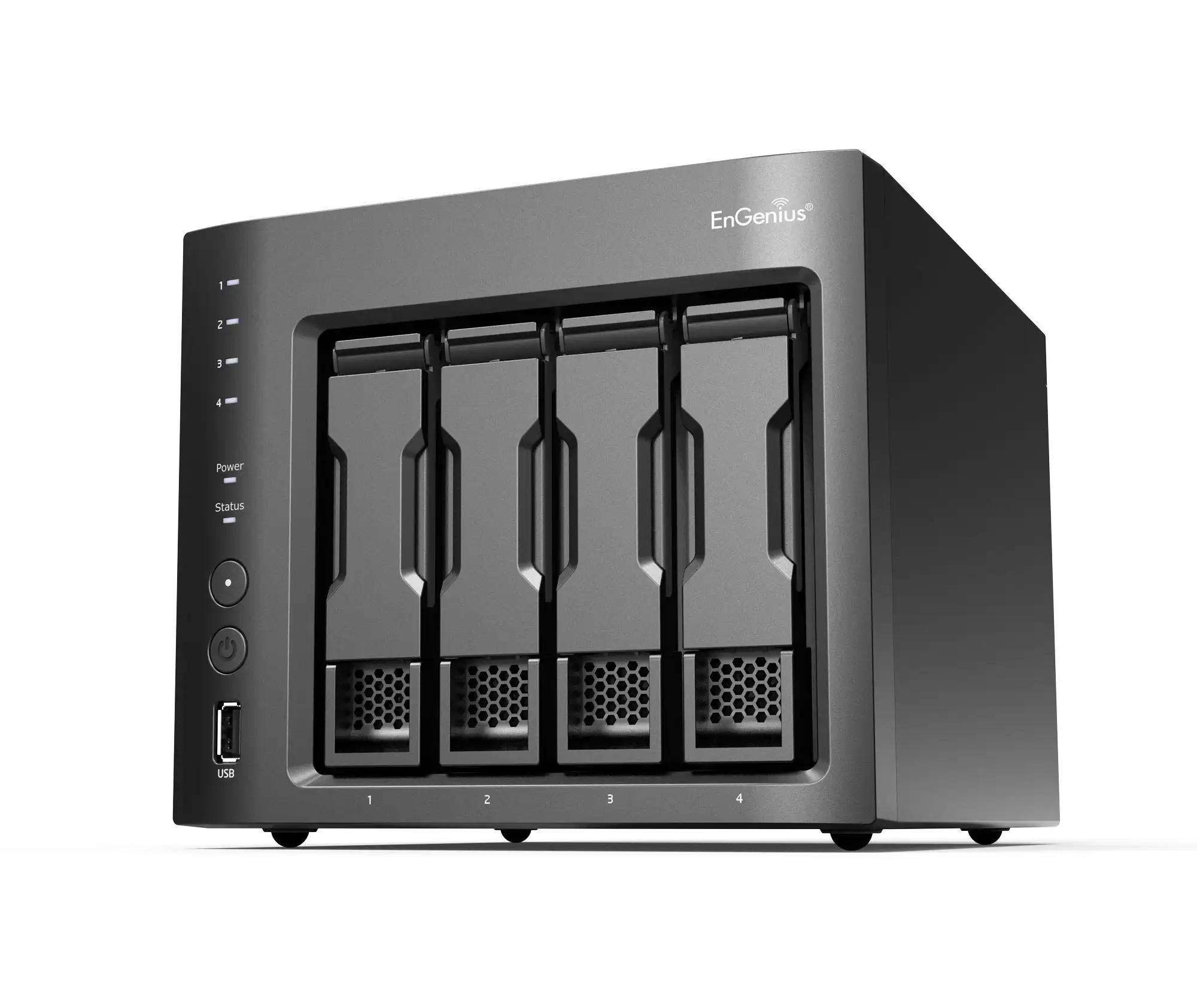

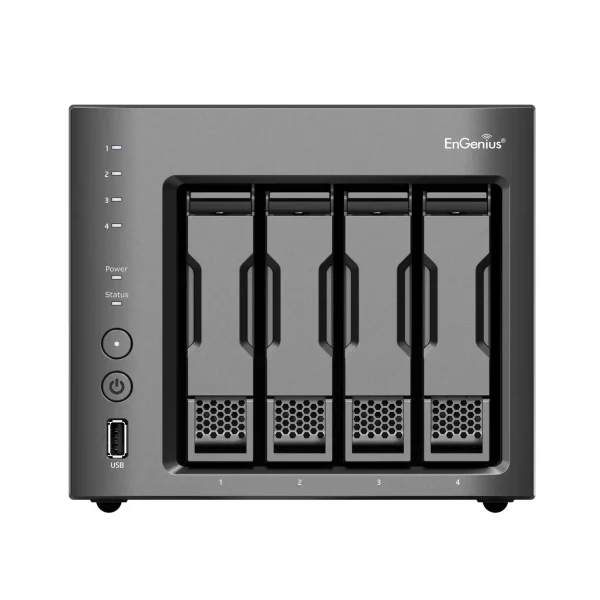

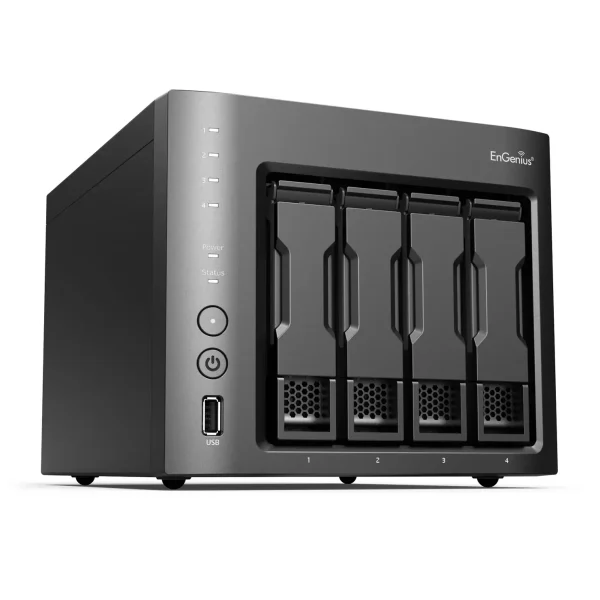

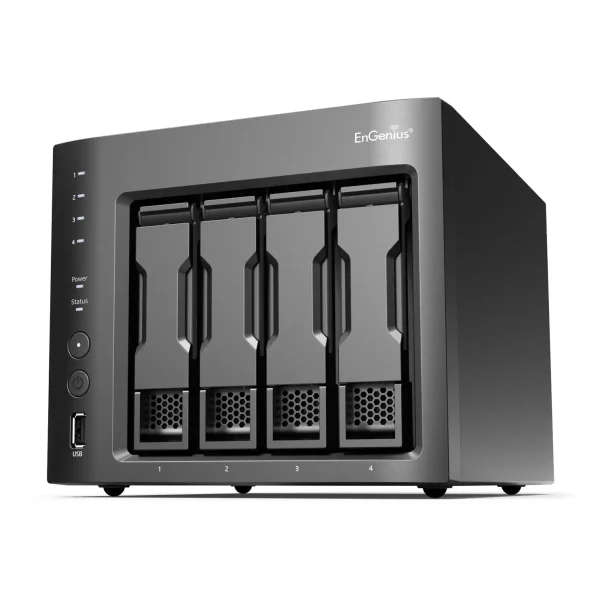

The EnGenius EVS1004D AI Network Video System on-boards up to 16 ONVIF/RTSP cameras to EnGenius Cloud for advanced AI analytics and centralized manageability while providing extensive video backup with 4-bay redundancy.
Modernize Existing Surveillance with Cloud AI
The EVS1004D combines AI-powered analytics, centralized cloud management, and RAID-protected storage in a high-capacity platform ideal for retail, education, healthcare, hospitality, warehouses, commercial campuses, and enterprise security deployments.
Integrate Existing Cameras
Connect ONVIF and RTSP cameras to EnGenius Cloud to extend the life of existing surveillance investments without replacing hardware.
Hybrid Edge & Cloud AI
Unlock EnGenius Cloud AI features including intelligent search, person and vehicle detection, and centralized event management.
RAID-Protected Storage
Four drive bays with RAID support provide redundant storage, improved data protection, and extended video retention.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Join Our PoC Program!
Get a fully sponsored EnGenius AI surveillance deployment & become a trusted reference!
Specifications
Technical
CPU
Intel Elkhart Lake x6211E
Flash
16GB
Memory
8GB
Max Camera Connections
16 cameras
Camera Resolution
FHD, 4MP, 5MP, 4K
Camera Interface
ONVIF Profile S, RTSP
RAID
RAID 1/5/6
Storage Retention
24/7 seamless recording and retention
Max AI Empower
2 cameras
Security
TPM v2.0
Drive Interface
SATA 3.0 x 4

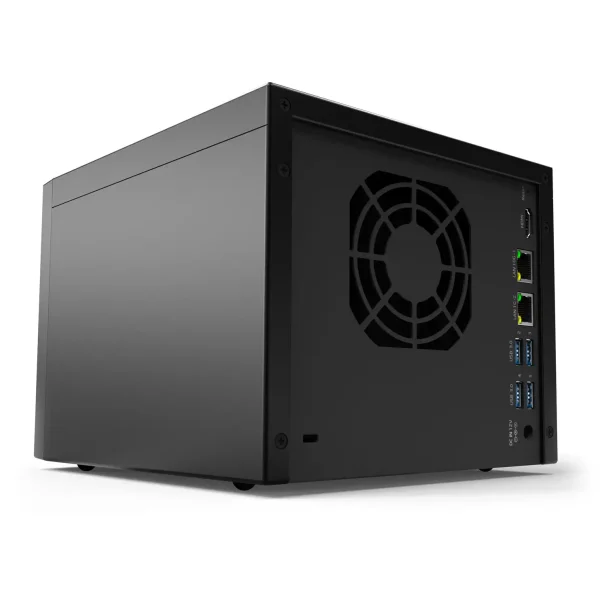

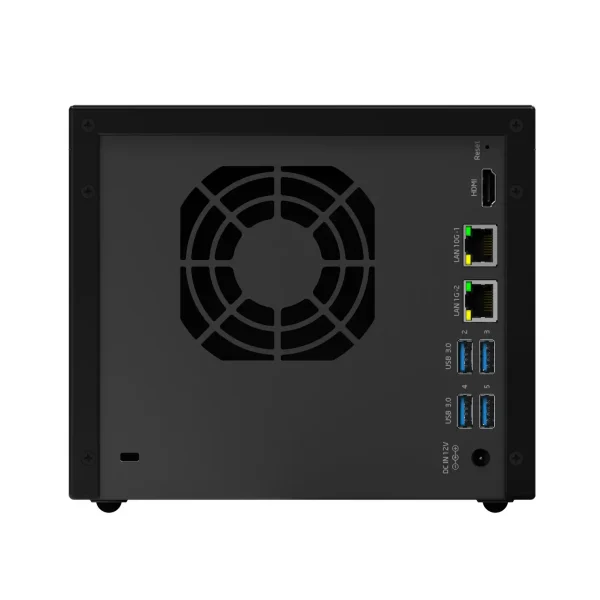

Networking Interface
10 GbE RJ45 x 1
1 GbE RJ-45 x 1
USB Port
3.0 Type A x 4
2.0 Type A x 1
FAN Speed Control
Yes
Thermal Sensor
CPU x 1
System x 1
Buzzer
Yes
Display
HDMI 1.4b x 1
Button
Power
Function
LED Indicator
1 x Power
1 x Function
4 x HDD
Power Supply
Max. Power Consumption
140W
Kensington Slot
Yes
Dive Pool Lock
Yes
Enclosure Material
Aluminum Alloy
Polycarbonate
Software Capabilities
People Analytics
People detection
People tracking
Smart motion search
People counting
Vehicle Analytics
Vehicle detection
Vehicle tracking
Smart motion search
Vehicle counting
EnGenius Cloud AI
Natural language search
Contextual AI analysis
SD-Alert
Environmental & Physical
Ambient Operating Temperature
0°C ~ 50°C (32°F ~ 122°F)
Ambient Operating Humidity
10 to 85% RH
Package Contents
1 x EVS1004D AI NVS
1 x Adaptor
Dimensions & Weights
EVS1004D Device
Weight: 5.89 lbs. (2.67 kg)
Width: 7.07“(179.6mm)
Length: 8.56” (217.5mm)
Height: 6.22” (158mm)
EVS1004D Packaging
Weight: 8.65lbs (3.93kg)
Width: 12.99“(330mm)
Length: 10.12” (257mm)
Height: 9.06” (230mm)
Compliance & Warranty
Warranty
5 years
Certifications
CE
FCC
Compliance
TAA
NDAA
NVS Capacity Planning Tool
Turn existing cameras into AI-driven systems—no hardware needed—with the EnGenius EVS Series, delivering analytics, alerts, search, and centralized cloud management. Interactive NVS capacity calculator that estimates resource usage by camera type, resolution, and AI features, with real-time insights and optimization guidance for scalable deployments.
