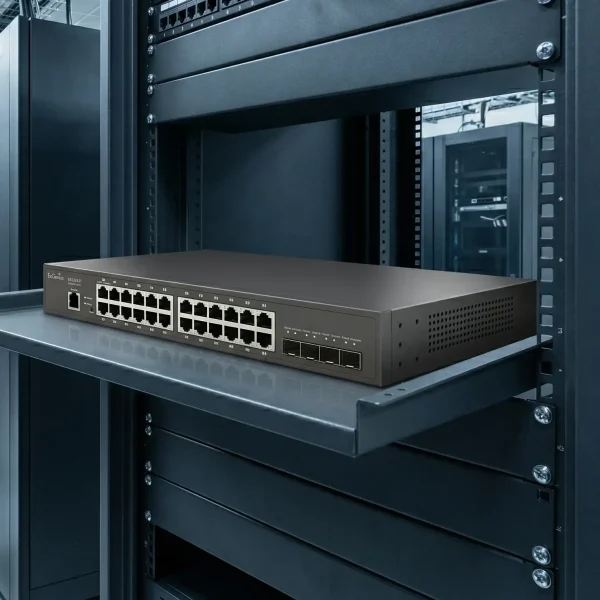

Cloud Managed Switch 24 Port 13” Compact Gigabit with 4 SFP+ Ports

ECS1528T  |  More Details >

Multiple management options for large businesses to easily configure, monitor, and manage

Getting Started with EnGenius Cloud   |   Try the Cloud Demo >





Buy Now


Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
24 10/100/1000 Mbps Ports
4 SFP+ Ports

Switching Capacity
128Gbps

SDRAM
512MB

Flash Memory
128MB

Power Source
100 ~ 240VAC, 50-60Hz



Physical Interface



LED Indicators
Power LED
Fault LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)



Software Features (L3 Features)



Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries



Software Features (L2 Features)



Network Management
EnGenius Cloud
Local Web GUI

MAC Address Table
16K

Jumbo Frame
9K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries



Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding

Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

System Time
Time Setting/Daylight saving

Common L2 Features
802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast/Unknown Unicast Storm Control



Environmental & Physical



Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)
Operating: 5% - 95%

Package Contents
1 x Cloud Managed Gigabit Switch
1 x Quick Installation Guide
1 x Power Cord
1 x RJ45 Console Cable
1 x Rack Mount Kit



Dimensions & Weights



ECS1528T Device:
Weight: 5.07 lbs. (2.3 kg)
Width: 9.06” (230 mm)
Length: 12.99” (330 mm)
Height 1.73” (44 mm)

Packaging
Weight: 6.68 lbs. (3.03 kg)
Width: 12.05” (306 mm)
Length: 15.39” (391 mm)
Height: 3.98” (101 mm)

Warranty
5 years

Certifications
CE
FCC
IC



Type Name Version Release Date Download Checksum
Firmware ECS15XX-25XX_firmware_v1.2.96-172.imag v1.2.96-172 December 11, 2024
Firmware ECS15XX-25XX_firmware v1.2.70-138.imag v1.2.70 November 26, 2024 -
Webpage Compare Switch Models - November 27, 2024 -
Webpage Learn More About EnGenius Cloud - November 25, 2024 -
Webpage Learn More About Gigabit Switches - November 26, 2024 -
Data Sheet ECS1528T Datasheet v1.0 November 03, 2024 -
Quick Guide ECS1528T Quick Start Guide v1.0 November 03, 2024 -
User Manual Cloud Switch Command Line Interface User Manual v1.0 November 04, 2024 -
User Manual EnGenius Cloud Switch User Manual v1.0 November 04, 2024 -
Data Sheet Cloud Managed Switch Datasheet v1.0 November 04, 2024 -
User Manual Cloud User Manual v1.0 November 27, 2024 -
User Manual Getting Started with Two Factor Authentication v1.0 November 27, 2024 -
User Manual Getting Started with EnGenius Cloud v1.0 November 27, 2024 -
Data Sheet EnGenius Cloud Management Datasheet v1.6 November 27, 2024 -

Product Highlights
The EnGenius cloud-managed ECS1528T 24-port 13” 1U rackmount compact gigabit layer 2+ switch with 4 SFP+ uplink ports and multiple management options for large businesses to easily configure, monitor, and manage. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget.

 5-Year Warranty
  • 24 10/100/1000 Base-T GbE Ports
  • Full-Featured Layer 2+ Switching
  • 13” 1U rackmount compact design
  • 128 Gbps Switching capacity
  • 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
  • Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
  • Quick-Scan Device Register, Remote Monitoring and Troubleshooting
  • Advanced View Displays Network Topology with Devices and Relationships
  • Hybrid Switch Supports Multiple Management Options
  • Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency
  • 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
  • Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
  • Voice VLAN for fast, reliable deployment of VoIP services
