Specifications Overview

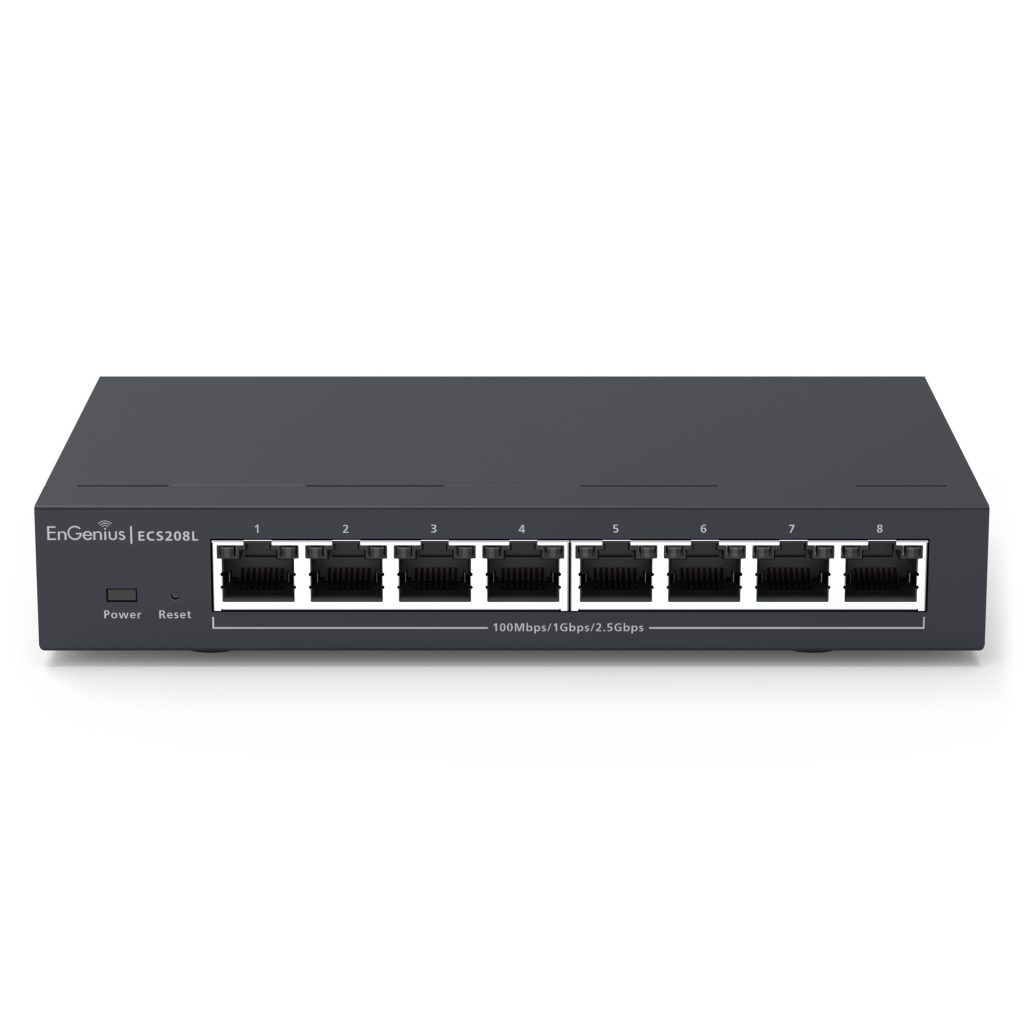

Cloud Lite 8-Port Multi-Gigabit Switch

ECS208L | More Details >

2.5G ports and a 40Gbps switching capacity enables multi-gigabit performance

Getting Started with EnGenius Cloud | Try the Cloud Demo >

Pre-order Now

Technical Specifications

Port Standards
802.3u 100Base-T Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports (Copper Ports)
8 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet ports

Switching Capacity
40 Gbps

Flash Memory
32 MB

Power Source
100 ~ 240VAC, 50-60Hz

Performance & Capacity

MAC Address Table
4K

Jumbo Frame
12K

Multicast Group
Max. 8 groups

Switch Features

QoS-Number of Priority
Queues Supported
Queue 8

Trust Mode
CoS/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR

Bandwidth Control
Port-based bandwidth control
(Ingress/Egress)

Web Graphical User Interface (GUI)
HTTP IPv4
HTTPS IPv4

System Time
Time Setting / Daylight Saving

Layer 2 Features
802.1w Rapid Spanning Tree
Multicast Filtering
IGMP Snooping
802.1Q VLAN tagging
802.3x Flow Control
Voice VLAN
Port-based VLAN
CoS Mapping
IPv4 Settings
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
Broadcast/Unknown Multicast

Environmental & Physical

Operating Temperature
32°F to 104°F (0°C to 40°C)

Humidity (non-condensing)
5 to 95% non-condensing

Dimensions & Weights

Package Contents
1 x Cloud Lite Multi-Gigabit Switch
1 x Wall Mount Kit
1 x Quick Installation Guide
1 x Rubber Feet Cushion

Dimensions & Weights Device
Weight: 0.99 lbs. (0.45 kg)
Width: 4.13” (105 mm)
Length: 6.69” (170 mm)
Height: 1.06” (27 mm)

Packaging
Weight: 1.25 lbs. (0.57 kg)
Width: 6.57” (167 mm)
Length: 7.87” (200 mm)
Height: 3.54” (90mm)

Compliance & Warranty

Regulatory Compliance
- FCC Part 15 (Class B)
- IC
- CE EMC (Class B)
- RCM

Warranty
2 Years

Certifications
CE
FCC
IC

Type	Name	Version	Release Date	Download	Checksum

Product Highlights
EnGenius Cloud Lite ECS208L is a small compact 8-port Layer 2 switch supporting 2.5G per port and a 40 Gbps switching capacity for multi-gigabit speeds over existing cable runs to improve overall network performance. This switch offers flexible management options, allowing users to choose between cloud, on-premises, and local management.

8 multi-gigabit (10/100/1000/2500 Base-T GbE) ports support various high-bandwidth devices
40 Gbps switching capacity ensures seamless data flow and enhanced network performance
IGMP snooping reduces network traffic by ensuring multicast data is only sent to devices that need it
Spanning Tree Protocol (STP) provides network resilience through loop prevention and network stability
Energy Efficient Ethernet (802.3az) reduces power consumption during low activity
Auto-voice VLAN streamlines voice deployment for smooth, reliable VoIP integration
Auto-surveillance VLAN strengthens protection and simplifies reliable integration
Compatible with industry standards for seamless integration with existing network devices
Provides flexible management with cloud, on-premises, and local control
