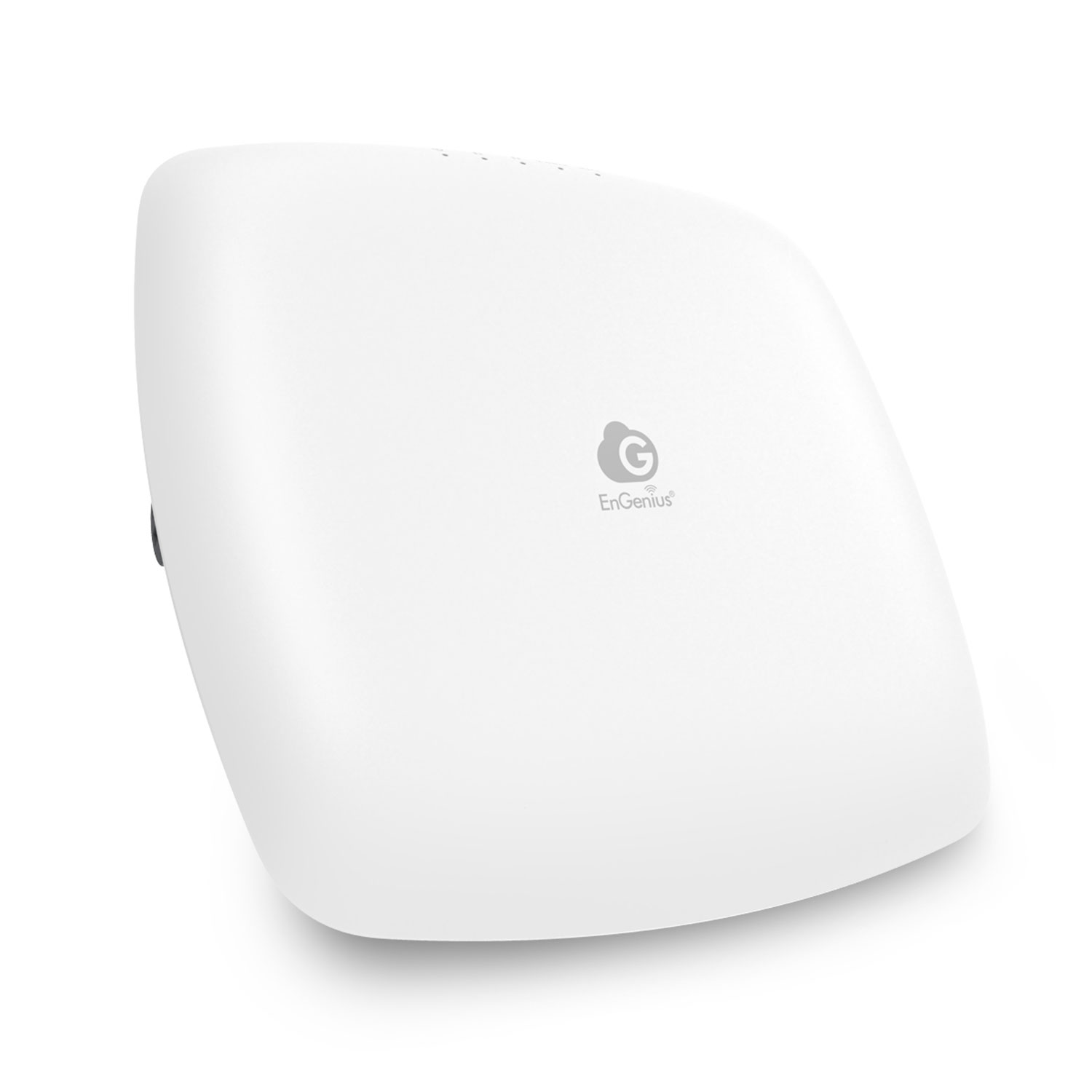

ECW130 Access Point

Cloud Managed WiFi 5 11ac Wave 2 4×4 Indoor Access Point

Cloud5 4×4  |  ECW130  |  More Details >

MU-MIMO dual-band wireless access point reaching speeds of 1,733 Mbps on 5GHz and 800 Mbps on 2.4GHz

Getting Started with EnGenius Cloud   |   Try the Cloud Demo >




Technical Specifications

Standards
IEEE 802.11b/g/n on 2.4GHz
IEEE802.11a/n/ac on 5GHz
IEEE 802.3 u/ab

Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 2.2GHz

Antenna
4 x 2.4 GHz: 4 dBi(Integrated Omni-Directional)
4 x 5 GHz: 6 dBi(Integrated Omni-Directional)

Scanning Radio
N/A

BLE
N/A

Physical Interface
1 x GE Port (PoE+)
1 x GE Port
1 x DC Jack
1 x Reset Button

LED Indicators
1 x Power
1 x LAN
1 x LAN 2
1 x 2.4 GHz
1 x 5 GHz

Power Source
Power-over-Ethernet: 802.3at
IEEE 802.11e Compliant Source
12VDC /2A Power Adapter (Not Included)

Maximum Power Consumption
19.1W



Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz

Operation Modes
AP, Mesh, AP Mesh

Frequency Radio
2.4GHz: 2400 MHz ~ 2482 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit Power
2.4GHz: 25 dBm
5GHz: 24 dBm
Maximum power is limited by regulatory domain

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
4x4:4

SU-MIMO
Four (4) spatial stream Single User (SU) MIMO for up to 800 Mbps wireless data rate with VHT40 bandwidth to a 4×4 wireless device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 1733 Mbps wireless data rate with VHT80 to a 4×4 wireless device under the 5GHz radio.

MU-MIMO
Four (4) spatial stream MU-MIMO for up to 1733 Mbps wireless data rate with VHT80 to a 4×4 wireless device under the 5GHz radio simultaneously.

Supported Data Rates (Mbps):
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 800 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM under HT40)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11n/ac: 4x4 MIMO with 4 Streams

Channelization
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac Packet Aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

DFS Certification
N/A

AirGuard (WIPS/WIDS)
N/A

Zero-wait DFS
N/A

Dedicated Scanning Radio
N/A

Max Concurrent User
128

Client Balancing
Yes

Auto Channel Selection
Yes

Management

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Compliance With IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control

Interface
IPv4, IPv6

Local Web Access
Supports HTTP or HTTPS

Environmental & Physical

Temperature Range
Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)
Storage: -22Fº~176ºF (-30ºC~80ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less



Device Dimensions & Weights

ECW130 Device
Weight: 1.39 lbs. (630g)
Width: 8.46” (215 mm)
Length: 8.46” (215 mm)
Height: 2.20” (56 mm)

ECW130 Packaging
Weight: 2.25 lbs. (1.02kg)
Width: 9.96” (253 mm)
Length: 9.80” (249 mm)
Height: 4.21” (107 mm)

Package Contents
1 – ECW130 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Product Card

Certifications
FCC
CE
IC

Warranty
5 years



Type Name Version Release Date Download Checksum
Firmware Cloud5 4x4_ECW130_firmware v1.3.75-1.bin v1.3.75-1 November 27, 2024 -
Webpage Learn How to Stay Connected From Home - November 27, 2024 -
Webpage Compare Access Point Models - November 27, 2024 -
Webpage Learn More About EnGenius Cloud - November 27, 2024 -
Data Sheet ECW130 Datasheet - November 05, 2024 -
Quick Guide ECW130 Quick Start Guide v1.0 November 05, 2024 -
Data Sheet Cloud Managed Access Point Datasheet v5.2 December 25, 2024 -
User Manual Cloud User Manual v1.0 November 27, 2024 -
User Manual Getting Started with Two Factor Authentication v1.0 November 27, 2024 -
User Manual Getting Started with EnGenius Cloud v1.0 November 27, 2024 -
Data Sheet EnGenius Cloud Management Datasheet v1.6 November 27, 2024 -

Product Highlights
EnGenius Cloud Managed ECW130 indoor WiFi 5, 4x4, MU-MIMO access point reaches speeds up-to 1,733 Mbps on 5GHz and 800 Mbps on 2.4GHz band providing business-class Wi-Fi. IT teams can use a single pane of glass to remotely manage, monitor, and troubleshoot this business-class AP to increase uptime, improve client performance, and minimize daily maintenance task.

 5-Year Warranty
  • Fast and reliable AP utilizing 4 spatial streams and MU-MIMO for any professional office
  • Supports up to 1,733 Mbps in 5-GHz band & 800 Mbps in 2.4-GHz band
  • 802.11ac wave 2 compatible with ax/ac/a/b/g/n client devices
  • Four (4) 6 dBi 5 GHz and four (4) 4 dBi 2.4 GHz, for 360 degree Wi-Fi coverage
  • 1 GigE PoE+ compatible port for easy AP placement
  • 1 GigE port for link aggregation to maximize wired speed
  • High-powered radios to increase meshing distances on either 2.4 GHz or 5 GHz
  • Cloud-manage unlimited number of APs from anywhere with the EnGenius Cloud app
  • Real-time AP diagnostics, deep-dive analytics, and remote configurations
  • No access point licensing or subscription fees needed

Must be Powered over Ethernet, does not include AC Adapters.



ECW130 Power Sources
ACP12V2A Power Adapter
EPA5006GP PoE Injector
EPA5006GR PoE Injector
EPA5006GAT PoE Injector
All EnGenius Cloud Switches
