Proprietary PoE Adapter

Gigabit 32-watt Proprietary PoE Adapter with Reset Button

EPA5006GR

Supports high-speed data and up to 32.8 watts of power to compatible network devices up to 328 feet away

BUY NOW



Technical Specifications

Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
Proprietary PoE

Compliance
IEC 60950-1:2005+A1
UL60950-1
ENS55022:2010
EN55024:2010
FCC Part 15 Class B
FCC, CE

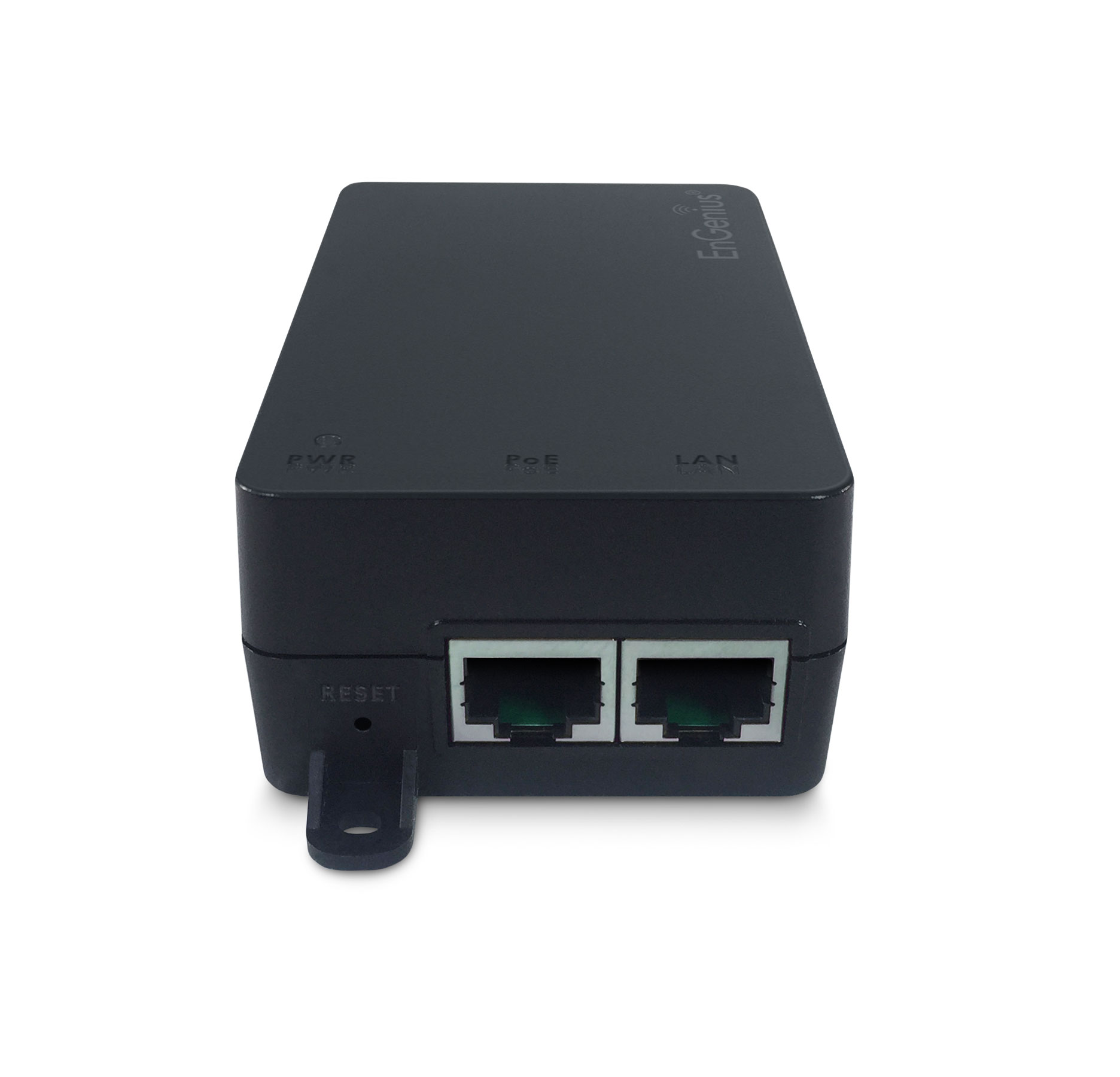

Physical Interface
(1) Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector
(1) Reset button.

LED Indicator
1 x Power on Green

Mounting
Wall (anchors & screws included)
Power
Input Voltage
100 to 240VAC

Input Current
0.8A Max for 100VAC

AC Input Frequency
47-63Hz

Maximum Output Power
32.8W

Power Lines
Pin4, 5:54V, Pin7, 8:Return

Added Protection Features
Short-Circuit
Surge (over current/over voltage)


Environmental & Physical

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -22°F to 176°F (-30°C to 80°C)

Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less


Device Dimensions & Weights

EPA5006GR Device (Without Mounting Kit)
Weight: .33 lbs. (154 g)
Length: 3.9” (99 mm)
Width: 2.27” (68.5 mm)
Height: 1.3” (33 mm)

Packaging
Weight: .57 lbs. (262 g)
Length: 5.4” (139 mm)
Width: 4.8” (122.5 mm)
Height: 2” (52 mm)

Package Contents
EPA5006GR
Power Cord

Warranty
1 Year


Product Highlights
The EnGenius EPA5006GR gigabit proprietary Power-over-Ethernet adapter supports high-speed data and up to 32.8 watts of power. Compact port design provides easy installation, and built-in power surge protection preserves valuable equipment. A PoE injector, placed closer to ground level, has a reset button that allows administrators to reset devices conveniently without having to take them down.
  • Delivers both data and power to PoE-compatible devices
  • PoE injector reset button positioned conveniently near ground level
  • Optimal port design for easy mounting/positioning
  • Compact design
  • Extends power to unwired areas up to 328-ft./100m
  • Gigabit Ethernet in & out ports allow connection of high-speed devices
  • Disconnect, short-circuit & surge protection assures secure, reliable connections
  • Sends up to 32.8W of output power for connecting APs, IP cameras, VoIP phones & more
  • Mounts to walls or ceilings with included hardware
