802.3at PoE Adapter

2.5 Gigabit 802.3at PoE Adapter

EPA5006HAT

802.3at PoE Adapter Supports high-speed data and up to 30 watts of power to compatible network devices

Buy Now





Technical Specifications

Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
Standard PoE

Compliance
IEC 60950-1:2005+A1
UL60950-1
ENS55022:2010
EN55024:2010
FCC Part 15 Class B
FCC, CE

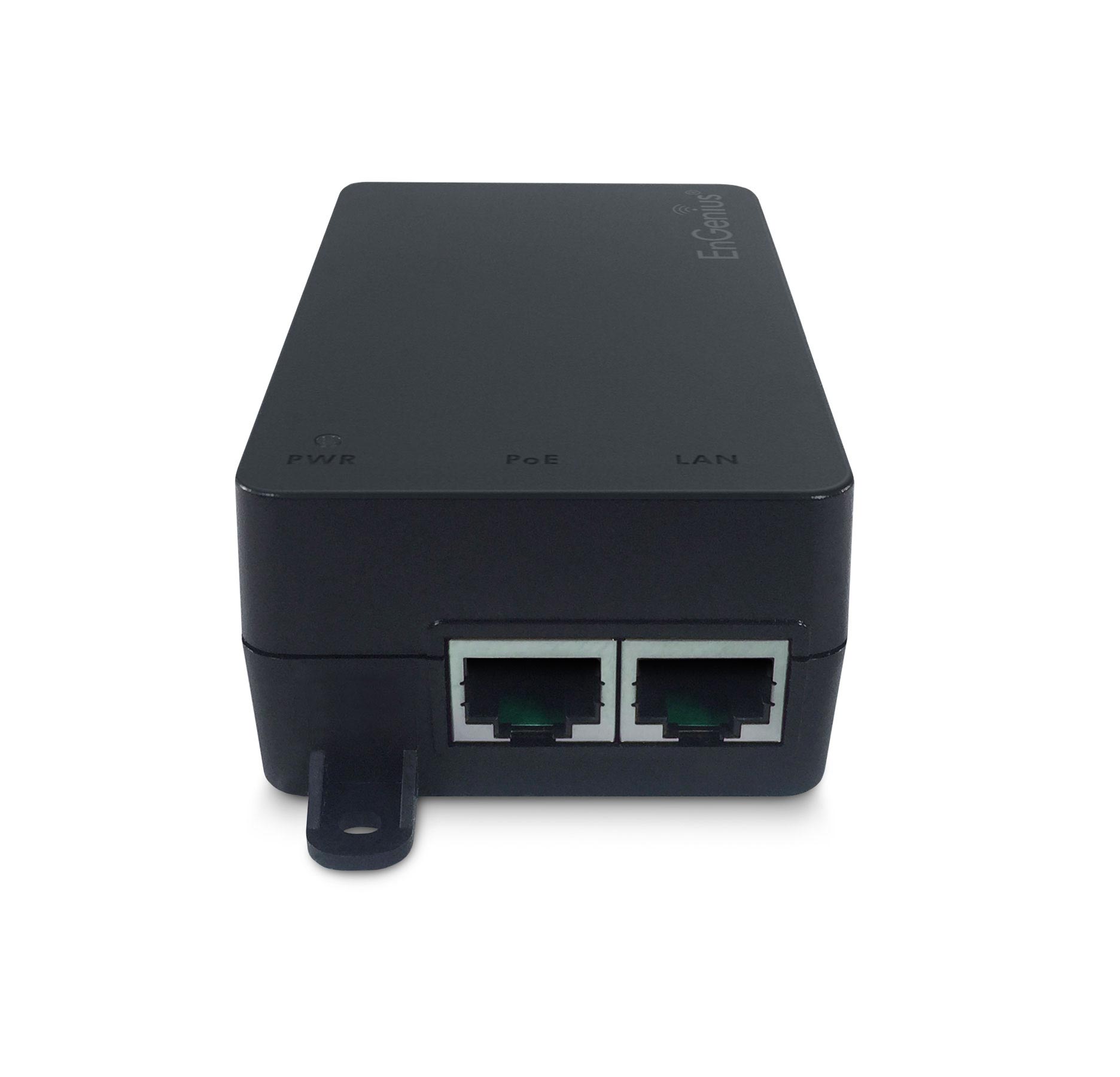

Physical Interface
(1) 2.5 Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector

LED Indicator
1 x Power on Green

Mounting
Wall (anchors & screws included)


Power

Input Voltage
100 to 240VAC

Input Current
0.8A @ 120V AC
0.4A @ 240V AC

AC Input Frequency
50-60Hz

Maximum Output Power
30 W

Power Lines
Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-)

Data Lines
Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-)

Surge Protection
L-L: 2KV; L-G: 4KV

ESD
Contact 4KV; Air: 8KV


Environmental & Physical

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)

Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less


Device Dimensions & Weights

EPA5006HAT Device (Without Mounting Kit)
Weight: .33 lbs. (154 g)
Length: 3.9” (99 mm)
Width: 2.27” (68.5 mm)
Height: 1.3” (33 mm)

Packaging
Weight: .57 lbs. (262 g)
Length: 5.4” (139 mm)
Width: 4.8” (122.5 mm)
Height: 2” (52 mm)

Package Contents
EPA5006HAT
power cord

Warranty
1 Year


Product Highlights
The EnGenius EPA5006HAT 2.5 Gigabit standard Power-over-Ethernet adapter supports high-speed data and up to 30 watts of power. Compact port design provides easy installation, and built-in power surge protection preserves valuable equipment.
  • 2.5 Gigabit Ethernet in & out ports allow connection of high-speed devices
  • Delivers both data and power to PoE-compatible devices
  • Optimal port design for easy mounting/positioning
  • Compact design
  • Extends power to unwired areas up to 328-ft./100m
  • Disconnect, short-circuit & surge protection assures secure, reliable connections
  • Sends up to 30W of output power for connecting APs, IP cameras, VoIP phones & more
  • Mounts to walls or ceilings with included hardware
