5-Port
Switch Extender

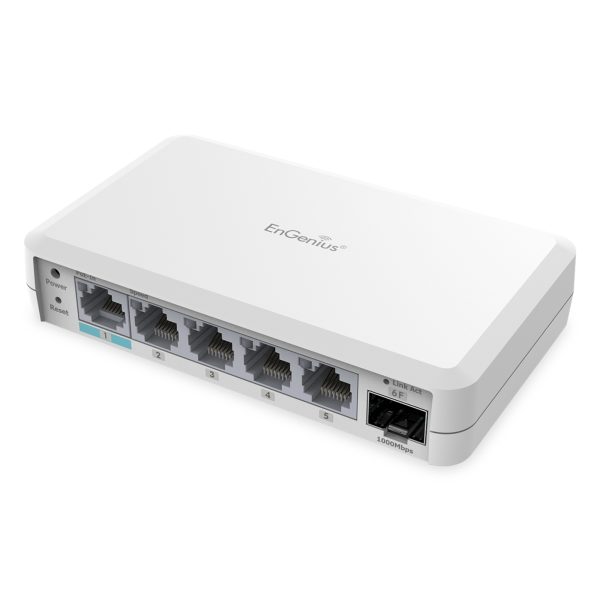

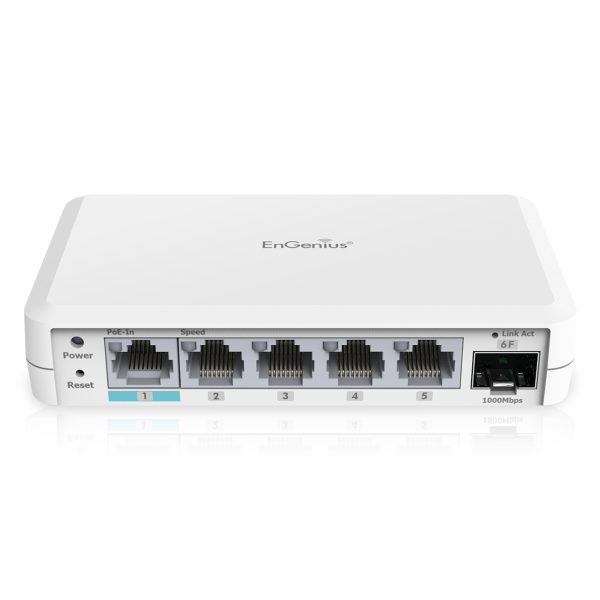

The EnGenius EXT1106 is a cloud-managed Gigabit switch extender with 5 Ethernet ports and 1 SFP port, extending connectivity beyond the 328ft Ethernet limit. Flexible PoE or USB-C power makes network expansion simple and cost-effective.
Extend Networks Beyond Ethernet Limits
The EnGenius EXT1106 provides flexible Gigabit network extension with 5 Ethernet ports, 1 SFP port, and cloud-based management for longer-distance and fiber-connected deployments.
Copper & Fiber Extension

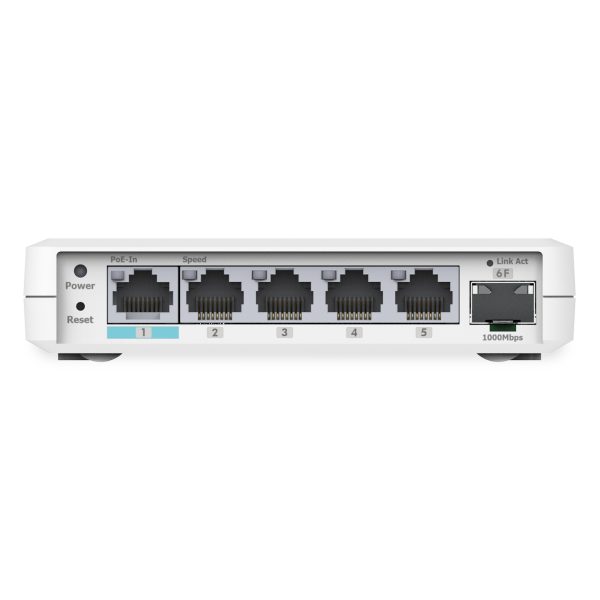

5 Gigabit Ethernet ports plus 1 SFP port provide flexible copper and long-distance fiber connectivity.
Flexible Power Options

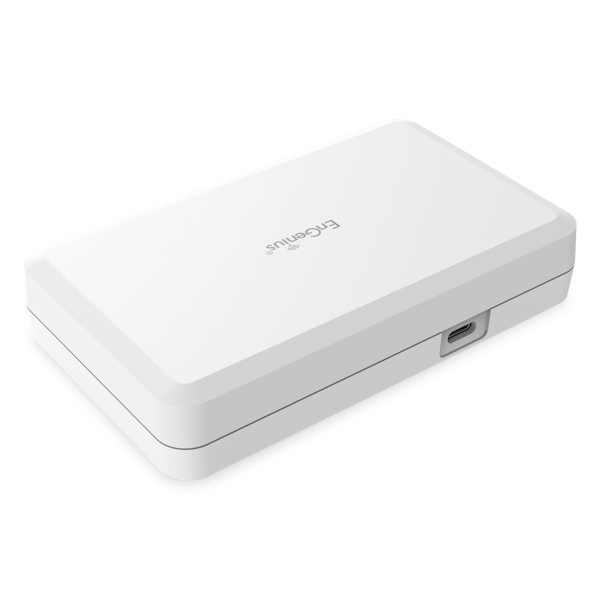

Supports PoE input or USB-C power for easier deployment where power availability is limited.
Flexible Management, Simplified
Manage switches with EnGenius Cloud, and Standalone Mode
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Port Standards
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
Network Ports
5 10/100/1000 Mbps Ports
1 10/100/1000 Mbps SFP Port
Power Source
PoE PD
Recommend EnGenius PoE adapters (EPA5006GP, EPA5006GAT)
Type-C (100 to 240 VAC, 50/60Hz)
Switching Capacity
12 Gbps
Flash Memory
32MB
LED Indicators
Port LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity (per SFP Slot)
MAC Address Table
8K
Jumbo Frame
10K
Multicast Group
Max 8 groups
QoS Number of Priority Queues
8
QoS Trust Mode
CoS/802.1p
CoS/802.1p-DSCP
DSCP
Features
802.1w Rapid Spanning Tree
Domain Name System (DNS) settings
Multicast Filtering
IGMPv2
IGMP Snooping
IGMP Snooping Fast Leave
Port Statistics
802.1Q VLAN
Voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 Settings
Link Layer Discovery Protocol (LLDP)
Weighted Round Robin Queue (WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory Default
Reboot Switch
Find Me
Environmental & Physical
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Humidity (Non-Condensing)
Operating: 5% – 95%
Package Contents
1 x 5 Ports Gigabit Switch Extender
1 x Product Card

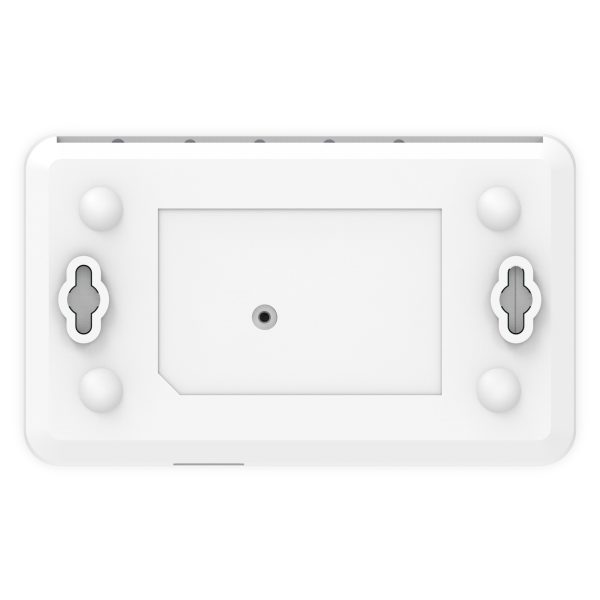

1 x Wall mount kit
1 x Power Adapter
Dimensions & Weights
EXT1106 Device
Weight: 0.27lbs. (124 g)
Length: 4.92” (125 mm)
Width: 2.09” (73.9 mm)
Height: 1.10” (28 mm)
EXT1106 Packaging
Weight: 0.52 lbs. (240 g)
Length: 3.26” (83 mm)
Width: 2.91” (74 mm)
Height: 5.39” (137 mm)
Warranty
5 years
Certifications
CE
FCC
LVD
