8-Port 60W PoE+
Switch Extender

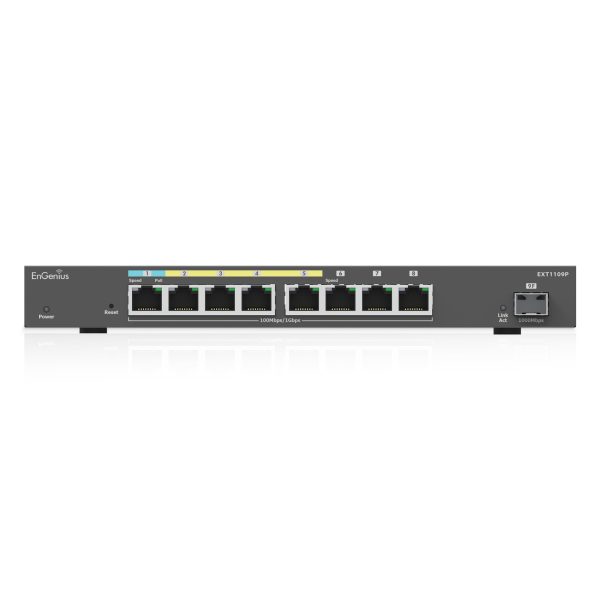

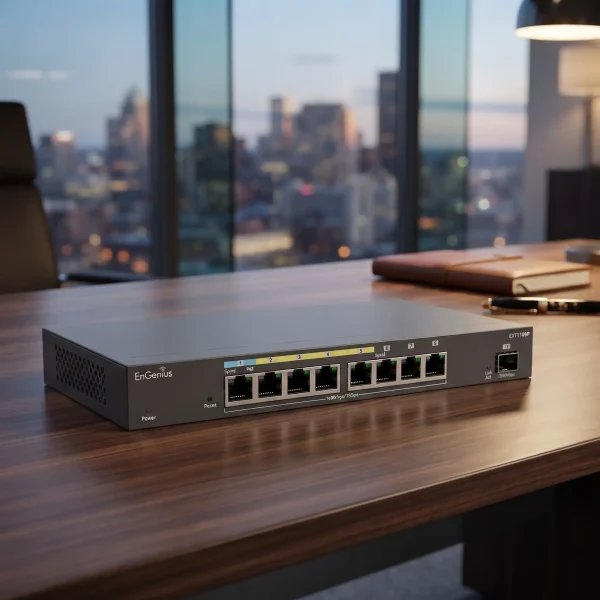

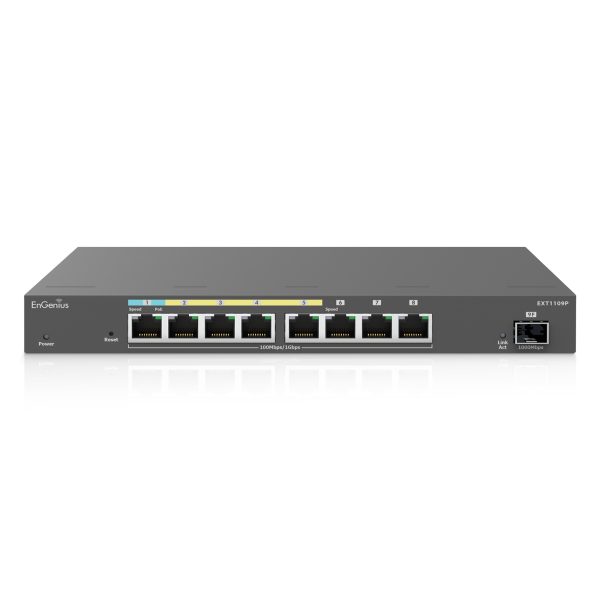

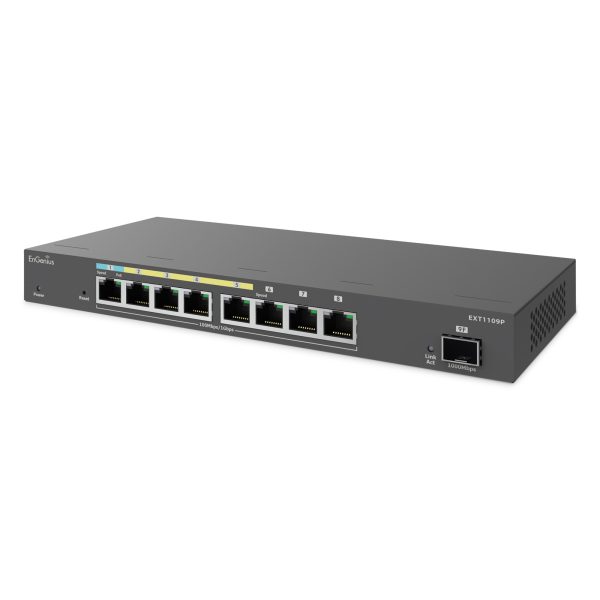

The EnGenius EXT1109P is a cloud-managed Gigabit PoE switch extender with PoE input, 4 x PoE+ outputs, 3 Ethernet ports, and 1 x SFP port, extending network and PoE connectivity beyond the 328ft Ethernet limit.
Expanded PoE Connectivity for Larger Deployments
The EnGenius EXT1109P combines Gigabit network extension, 4 PoE+ output ports, an SFP port, and cloud-based management for expanding connectivity to multiple remote devices
More Ports for Remote Expansion
Expand connectivity with 8 Gigabit Ethernet ports plus an SFP interface for larger remote deployments.
4 PoE+ Ports, Up to 60W Budget
Deliver power and data to access points, cameras, phones, and other PoE devices.
Flexible Management, Simplified
Manage switches with EnGenius Cloud, and Standalone Mode
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
7 10/100/1000 Mbps Ports
1 10/100/1000 Mbps PoE Input Port for Power
1 10/100/1000 Mbps SFP Port
PoE Capable Ports
Ports 2- 5 (802.3 af/at)
Total PoE Budget
Power Input: 802.3at Type 2(30W); Power Budget: up to 15W
Power Input: 802.3bt Type 3(60W); Power Budget: up to 40W
Power Input: 802.3bt Type 4(90W); Power Budget: up to 60W
Power Source
PoE PD
Recommend EnGenius PoE adapters (EPA5060GBT, EPA5090GBT), Optional DC-Jack (100 to 240 VAC, 50/60Hz)
Switching Capacity
18Gbps
Flash Memory
32MB
Power Source
Standard 802.3 PoE Input
DC-Jack power source (Optional, power adapter not Included)
Physical Interface
LED Indicators
Power LED
PoE LED
Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity (per SFP slot)
MAC Address Table
8K
Jumbo Frame
10K
Multicast Group
Max 8 groups
QoS Number of Priority Queues
8
QoS Trust Mode
CoS/802.1p
CoS/802.1p-DSCP
DSCP
Features
802.1w Rapid Spanning Tree
Multicast Filtering
IGMPv2
IGMP Snooping
IGMP Snooping Fast Leave
Port Statistics
802.1Q VLAN tagging
Voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 Settings
Link Layer Discovery Protocol (LLDP)
Weighted Round Robin Queue (WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory Default
Reboot
Environmental & Physical
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Humidity (Non-Condensing)
Operating: 5% – 95%
Package Contents
1 x Cloud Managed 8 Ports Gigabit Switch Extender
1 x Product Card
1 x Wall mount kit
1 x Adhesive label
1 x Rubber Feet Cushion
Dimensions & Weights
Dimensions & Weights
EXT1109P Device
Weight: 1.36 lbs. (620 g)
Length: 9.44” (240 mm)
Width: 4.13” (105 mm)
Height: 1.06” (27 mm)
EXT1109P Packaging
Weight: 3.3 lbs. (1495 g)
Length: 10.67” (271 mm)
Width: 6.61” (168 mm)
Height: 3.34” (85 mm)
Warranty
5 years
Certifications
CE
FCC
IC
