Wi-Fi 6 Security
Access Point
The EnGenius ECW220S Wi-Fi 6 access point delivers reliable dual-band wireless performance, cloud-managed security features, and business-class connectivity for growing organizations.
Secure Connectivity for Growing Businesses
The ECW220S combines Wi-Fi 6 performance, advanced wireless security, and centralized cloud management, making it ideal for offices, retail stores, professional services, healthcare clinics, and branch locations.
AirGuard Protection
Automatically detect and help mitigate unauthorized wireless devices and potential network threats.
Business-Class Wi-Fi 6 Performance
Deliver reliable wireless connectivity for business applications, cloud services, and connected devices.
Cloud-Managed Security
Deploy, monitor, and manage networks across multiple locations through the EnGenius Cloud platform.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
(Backward compatible with 802.11b/g/n/ac)
IEEE 802.3 u/ab
Processor
Qualcomm® Quad-Core ARM Cortex A53s @ 2.0GHz CPU
Antenna
2 x 2.4 GHz: 4 dBi(Integrated Omni-Directional)
2 x 5 GHz: 5 dBi(Integrated Omni-Directional)
Scanning Radio
Yes
BLE
Yes

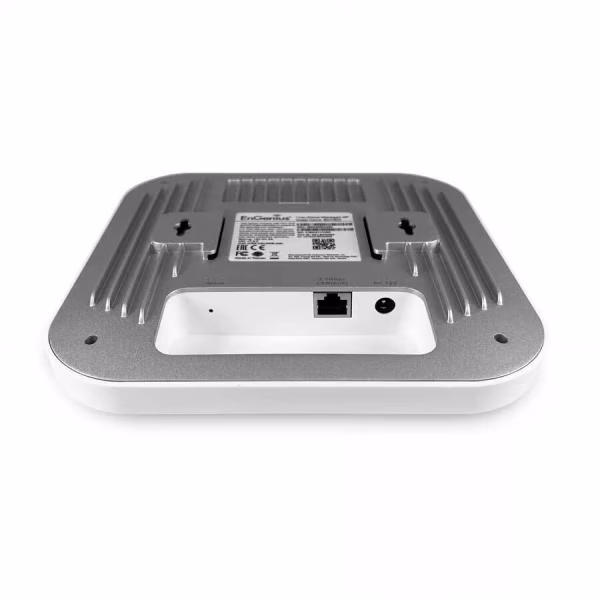

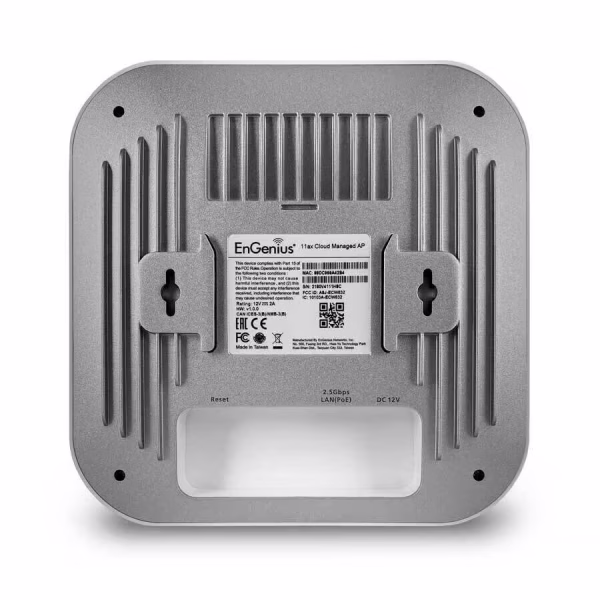

Physical Interface
1 x GE Port (PoE)
1 x DC Jack
1 x Reset Button

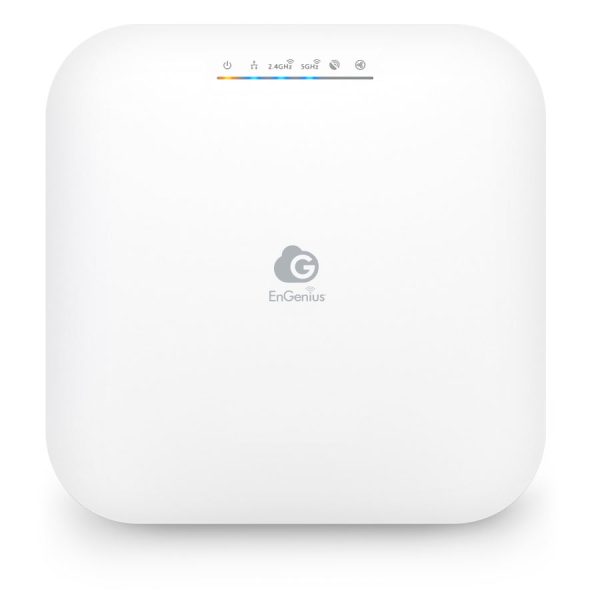

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3af Input
12VDC /2A Power Adapter (Not Included)
Maximum Power Consumption
12.8W
Wireless & Radio
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
AP, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 22 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.
Radio Chains/Spatial Stream
2×2:2
SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio.
MU-MIMO
Two (2) spatial streams multiple (MU)-MIMO for up to 1,200 Mbps wireless data rate to transmit to two (2) stream MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to two stream MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps)
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 4)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Dynamic Frequency Selection (DFS) Certified
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
DFS Certification
FCC/CE/IC
AirGuard (WIPS/WIDS)
Yes
Zero-wait DFS
Yes
Dedicated Scanning Radio
Yes
Max Concurrent Users
512 Per radio
Client Balancing
Yes
Auto Channel Selection
Yes
Management
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliance With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11r/k
Wireless Security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
Interface
IPv4, IPv6
Local Web Access
Supports HTTP or HTTPS
Environmental & Physical
Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Device Dimensions & Weights
ECW220S Device
Weight: 0.86 lbs (390 g)
Length: 6.30″ (160 mm)
Width: 6.30″ (160 mm)
Height: 1.31″ (33.2 mm)
Packaging
Weight: 1.28 lbs (580 g)
Length: 8.07″ (205 mm)
Width: 8.07″ (205 mm)
Height: 3.27″ (83 mm)
Package Contents
1 x ECW220S Cloud Managed Indoor Access Point
1 x Ceiling Mount Base (9/16” Trail)
1 x Ceiling Mount Base (15/16” Trail)
1 x Ceiling and Wall Mount Screw Kits
1 x Product Card
Warranty
5 years
Certifications
FCC
CE
IC
Power Sources
This access point does not include an AC adapter and must be powered over ethernet.
