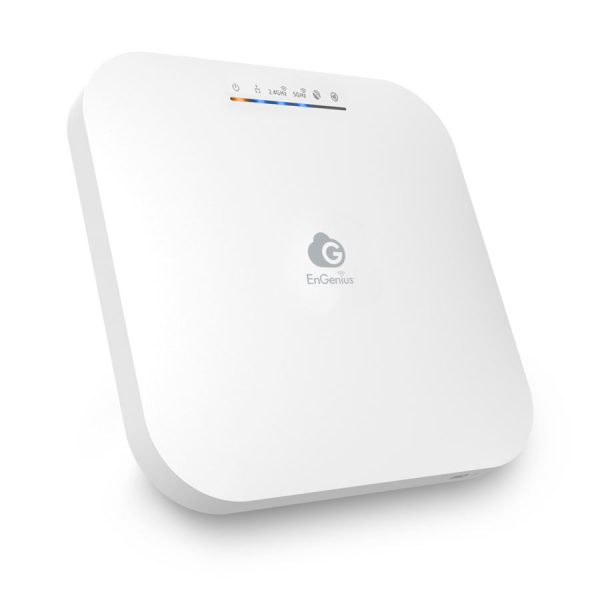

Wi-Fi 6 Security
Access Point
The EnGenius ECW230S Wi-Fi 6 access point delivers high-capacity 4x4 wireless performance, cloud-managed security features, and 2.5 Gigabit connectivity for demanding business environments.
Powering Secure Business Networks
The ECW230S combines enterprise-grade Wi-Fi 6 performance, advanced wireless security, and centralized cloud management for education, hospitality, healthcare, enterprise offices, and commercial environments.
AirGuard Protection
Automatically detect and help mitigate unauthorized wireless devices and potential network threats.
High-Capacity Wireless Performance
Support large numbers of users and connected devices with reliable, high-capacity wireless connectivity.
Real-Time Wi-Fi Insights
Continuously analyze network performance to identify interference, optimize channel utilization, and improve the wireless experience.
Resources
Access comprehensive documentation, technical guides, and planning tools to accelerate your deployment cycle.
Try Wi-Fi 7 For Free!
Turbo-charge your network with a tri-band access point.
Specifications
Technical
Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
(Backward compatible with 802.11b/g/n/ac)
IEEE 802.3 u/ab
Processor
Qualcomm® Quad-Core ARM Cortex A53s @ 2.0GHz CPU
Antenna
4 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
4 x 5 GHz: 6 dBi(Integrated Omni-Directional)
Scanning Radio
Yes
BLE
Yes

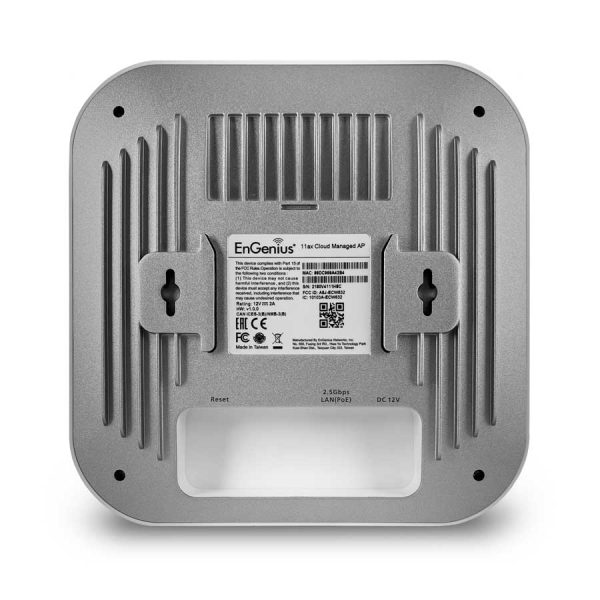

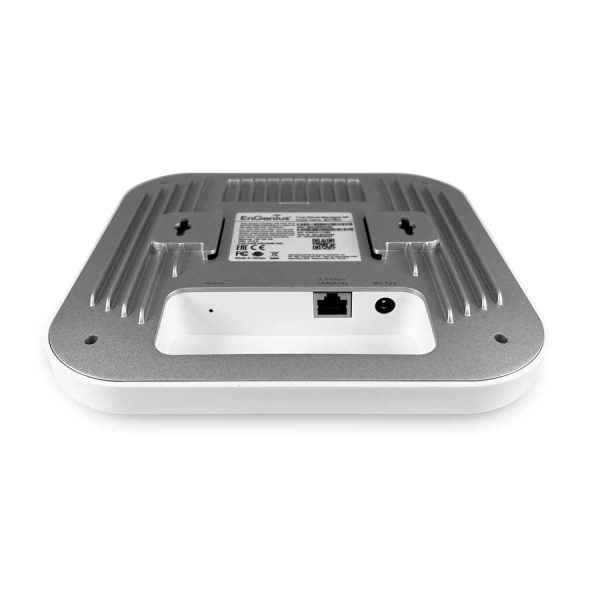

Physical Interface
1 x 2.5GE Port (PoE+)
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
1 x Scanning
1 x BLE
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)
Maximum Power Consumption
19.5W
Wireless & Radio
Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
AP, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.
Radio Chains/Spatial Stream
4×4:4
SU-MIMO
Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio.
MU-MIMO
Four (4) spatial streams multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) stream MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Four (4) multiple (MU)-MIMO for up to 1,148 Mbps wireless data rate to transmit to two stream MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps)
802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Dynamic Frequency Selection (DFS) Certified
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
DFS Certification
FCC/CE/IC
AirGuard (WIPS/WIDS)
Yes
Zero-wait DFS
Yes
Dedicated Scanning Radio
Yes
Max Concurrent Users
512 Per radio
Client Balancing
Yes
Auto Channel Selection
Yes
Management
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliance With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11r/k
Wireless Security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
Interface
IPv4, IPv6
Local Web Access
Supports HTTP or HTTPS
Environmental & Physical
Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Device Dimensions & Weights
ECW230S Device
Weight: 1.34 lbs. (607 g)
Length: 8.27″ (210 mm)
Width: 8.27″ (210 mm)
Height: 1.31″ (33.2 mm)
Packaging
Weight: 2.5 lbs. (1134 g)
Length: 9.65″ (245 mm)
Width: 9.65″ (245 mm)
Height: 3.35″ (85 mm)
Package Contents
1 x ECW230S Cloud Managed Indoor Access Point

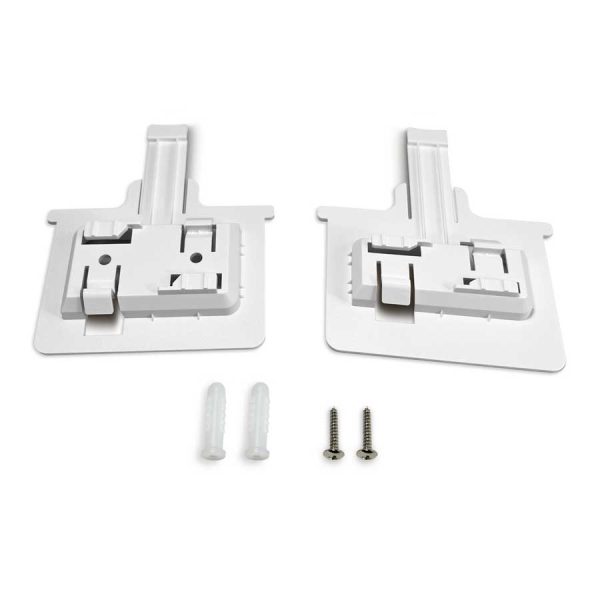

1 x Ceiling Mount Base (9/16” Trail)
1 x Ceiling Mount Base (15/16” Trail)
1 x Ceiling and Wall Mount Screw Kits
1 x Product Card
Warranty
5 years
Certifications
FCC
CE
IC
Power Sources
This access point does not include an AC adapter and must be powered over ethernet.
