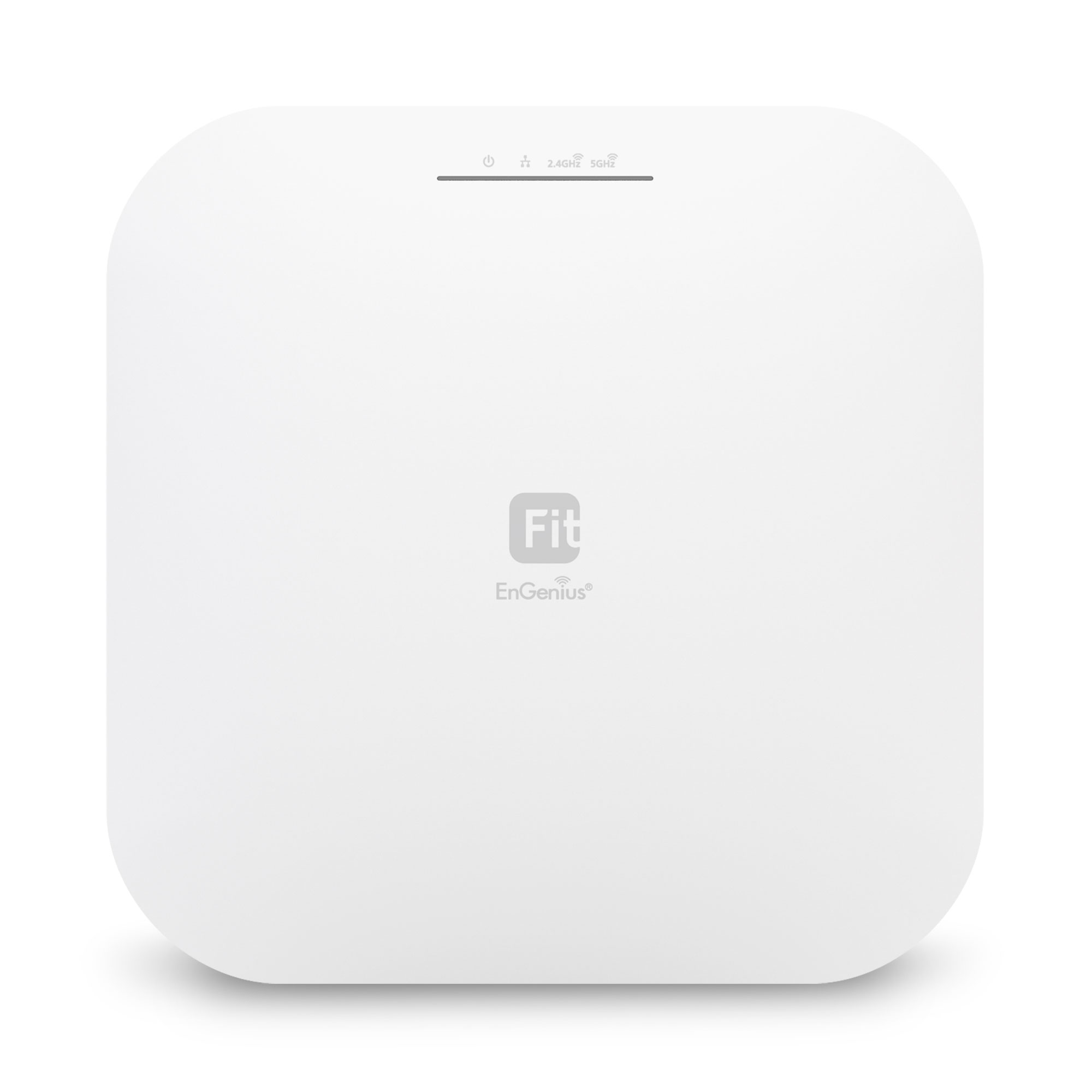

EnGenius Fit Wi-Fi 6 4×4 Indoor Wireless Access Point

EWS377-FIT

Powerful and reliable wireless connectivity for small business environments

More Details



Technical Specifications

Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz

Backward compatible with 802.11a/b/g/n/ac

Processor
Qualcomm® Quad-Core ARM Cortex A53s @ 2.0GHz CPU

Antenna
4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
Integrated Omni-Directional Antenna

Physical Interface
1 x 10/100/1000/2500 N-BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A

Maximum Power Consumption
19.5W


Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes
AP, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream
4x4:4

SU-MIMO
Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under both the 2.4 GHz and 5GHz radios.

MU-MIMO
Four (4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.

Four (4) multiple (MU)-MIMO for up to 1,148 Mbps wireless data rate to transmit to two streams MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 Mbps (MCS0 to MCS31)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ax supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK


Management

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Compliant with IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3
WPA2 Enterprise (AES)
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation


Environmental & Physical

Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less


Device Dimensions & Weights

EWS377-FIT Device
Weight: 1.70 lbs. (776 g)
Length: 8.27" (210 mm)
Width: 8.27" (210 mm)
Height: 1.31" (33.2 mm)

Packaging
Weight: 2.36 lbs. (1072 g)
Length: 9.65" (245 mm)
Width: 9.65" (245 mm)
Height: 3.35" (85 mm)

Package Contents
1 - EWS377-FIT Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 - Ceiling and Wall Mount Screw Kits
1 - Quick Installation Guide

Certifications
FCC
CE
IC


Product Highlights
The EnGenius Fit Managed EWS377-FIT Wi-Fi 6 4x4 indoor wireless access point is a business-class device that provides secure and reliable high performance while reducing capital and operating expenses for cost-conscious small businesses. With support for the latest 802.11ax technology, this access point is capable of delivering maximum speeds of 1,148 Mbps (2.4 GHz frequency) and 2,400 Mbps (5 GHz frequency). Additionally, it features an easy-to-use web interface for cloud or on-premises management options based on network architecture, administrative permissions, and technical aptitude.
  • Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 4x4 antenna
  • Supports up to 2,400 Mbps in 5-GHz frequency band & 1,148 Mbps in 2.4-GHz frequency band
  • 2.5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet)
  • Select cloud or on-premises management options based on network architecture, administrative permissions
  • From anywhere cloud visibility and control
  • Setup in minutes with app-based step by step instructions
  • Quick-scan device register, remote monitoring and troubleshooting
  • Real-time system metrics, analytics and remote configurations
  • No access point licensing or subscription fees
  • Uplink and downlink of OFDMA improves transmission to APs and client devices
  • Target wake time for power-saving of client & IoT devices
  • Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices


Must be Powered over Ethernet, does not include AC Adapters.
