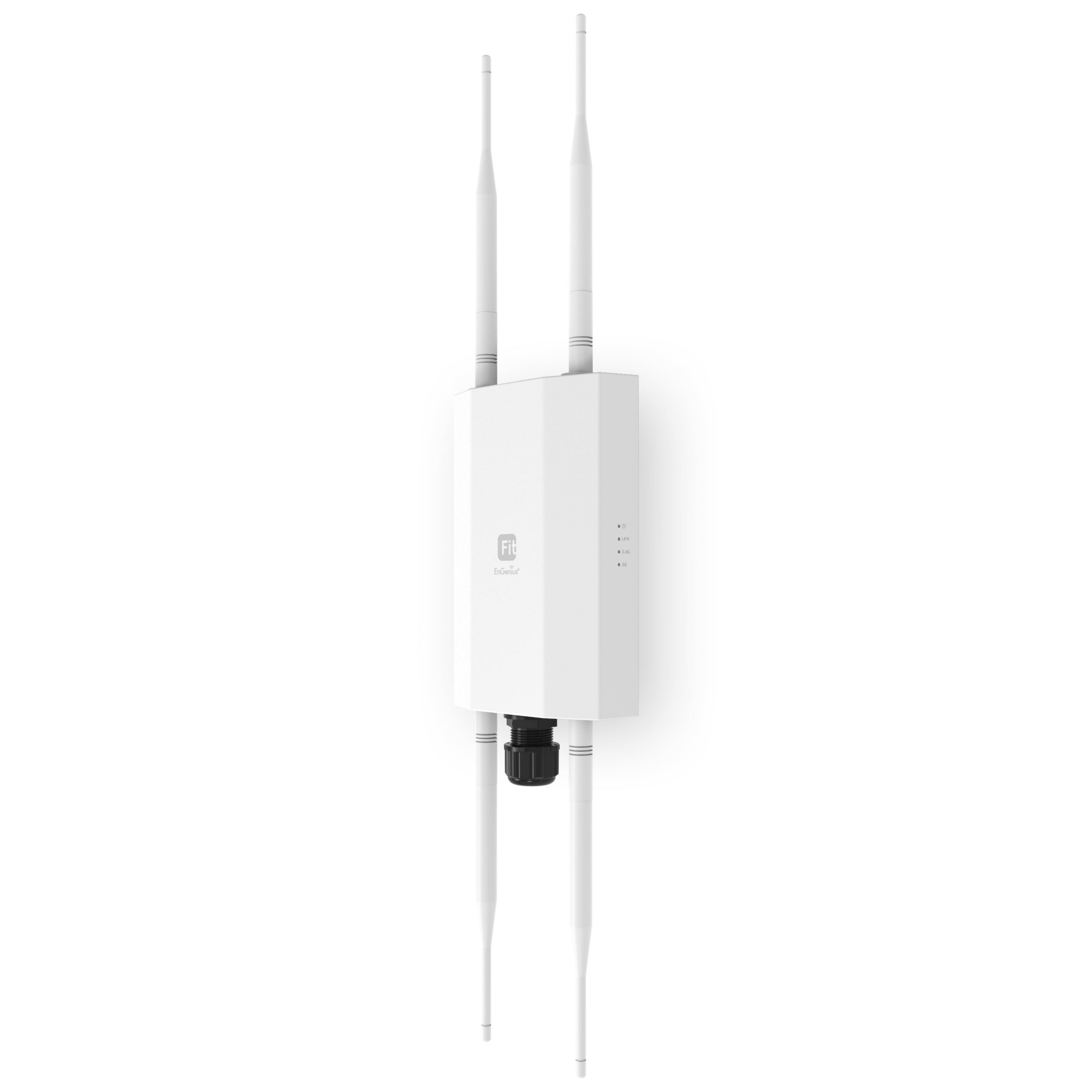

EnGenius Fit Wi-Fi 6 2×2 Outdoor Wireless Access Point

Fit6 2×2 Outdoor  |  EWS850-FIT  |  More Details >

Comes with multiple management options for the small business network environment

EnGenius Fit FAQ   |   Try the FitXpress Demo >





Buy Now



Technical Specifications

Standards
IEEE 802.11b/g/n/ax on 2.4GHz
IEEE802.11a/n/ac/ax on 5GHz

Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.8GHz

Antenna
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type

Physical Interface
1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source
Power-over-Ethernet: 802.3af/at
Proprietary 48V – 54V
IEEE 802.11e Compliant Source
Active Ethernet (PoE)

Maximum Power Consumption
15.9W

Surge Protection
1KV

ESD Protection
Contact: 4KV
Air: 8 KV


Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz

Operation Modes
AP, Mesh

Frequency Radio
2.4GHz: 2400 MHz ~ 2482 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit Power
2.4GHz: 23dBm
5GHz: 25dBm
Maximum power is limited by regulatory domain

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SUMIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both the 2.4G Hz and 5GHz radios.

MU-MIMO
Two (2) spatial streams multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously

Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)


Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK


Management

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint With IEEE 802.11e Standard WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3-PSK (SAE)
WPA3 Enterprise
WPA2 Enterprise (AES)
WPA2 AES-PSK
OWE
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation


Environmental & Physical

Temperature Range
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40Fº~176ºF/-40ºC~80ºC

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Waterproof & Dustproof
IP67-Rated Enclosure


Device Dimensions & Weights

EWS850-FIT Device
Weight: 1.54 lbs. (0.7 kg)
Width: 4.07” (124 mm)
Length: 7.48” (190 mm)
Height” 2.07” (52.5 mm)

Packaging
Weight: 3.96 lbs. (1.8kg)
Width: 9.21" (234 mm)
Length: 11.18" (284 mm)
Height: 5.67" (144 mm)

Package Contents
1 – EWS850-FIT Cloud Managed Outdoor Access Point
1 - PoE Injector (Model Number: EPA5006GR)
1 - Pole-Mounting Brackets
1 - Wall-Mount Screw Set
2 - 2.4GHz 5dBi SMA Antennas
2 - 5GHz 5dBi SMA Antennas
1 - Quick Installation Guide

Certifications
FCC
CE
IC

Warranty
1 Year


Type Name Version Release Date Download Checksum
Webpage Learn More About EnGenius FitController - November 27, 2024 -
Video Set Up EnGenius FitController - November 27, 2024 -
Webpage Learn More About EnGenius FitXpress - November 27, 2024 -
Video Set Up EnGenius FitXpress App - November 27, 2024 -
Webpage Learn More About EnGenius Fit - November 27, 2024 -
Firmware Fit6_2x2_Outdoor_EWS850-FIT_firmware_v1.1.61-2.bin v1.1.61-2 November 25, 2024
Firmware Fit6_2x2_Outdoor_EWS850-FIT_firmware_v1.1.60-23.bin v1.1.60-23 November 07, 2024
Firmware EWS850-FIT firmware v1.0.50 v1.0.50 November 06, 2024
Data Sheet EWS850-FIT Datasheet v1.0 November 06, 2024 -
Quick Guide EWS850-FIT Quick Start Guide v1.0 November 06, 2024 -
Data Sheet EnGenius Fit Access Point Datasheet v1.0 November 06, 2024 -
Data Sheet EnGenius FitController Network Management Datasheet v1.0 November 07, 2024 -
Data Sheet EnGenius Fit FAQs v1.0 November 07, 2024 -
Data Sheet EnGenius FitXpress Network Management Datasheet v1.0 November 06, 2024 -
Data Sheet EnGenius Fit Network Management Datasheet v1.0 November 06, 2024 -

Product Highlights
The EnGenius Fit Managed EWS850-FIT, a Wi-Fi 6 (802.11ax) 2x2 IP67 dual-band outdoor wireless access point designed for small business environments and provides maximum speeds of 574 Mbps (2.4 GHz frequency) and 1,200 Mbps (5 GHz frequency). This IP67-rated weatherproof and ruggedized wireless AP can be deployed outdoors. Select cloud or on-premises management options based on network architecture, administrative permissions, and technical aptitude. Business-class features optimize network efficiency ensuring secure, reliable, and high performance while reducing capital and operating expenses for cost-conscious small businesses.
  • Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna
  • Supports up to 1,200 Mbps in 5-GHz frequency band & 574 Mbps in 2.4-GHz frequency band
  • IP67-Rated weatherproof & dustproof housing withstands harsh environments
  • 2.5 GigE PoE+ compatible port for easy placement where power outlets are scarce
  • Select cloud or on-premises management options based on network architecture, administrative permissions
  • From anywhere cloud visibility and control
  • Setup in minutes with app-based step by step instructions
  • Quick-scan device register, remote monitoring and troubleshooting
  • Real-time system metrics, analytics and remote configurations
  • No access point licensing or subscription fees
  • Uplink and downlink of OFDMA improves transmission to APs and client devices
  • Target wake time for power-saving of client & IoT devices
  • Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices

Must be Powered over Ethernet, does not include AC Adapters.



EWS850-FIT Power Sources
EPA5006GR
EPA5006GAT
EPA5012GP
All EnGenius Fit Switches (except EWS2910P-FIT)
